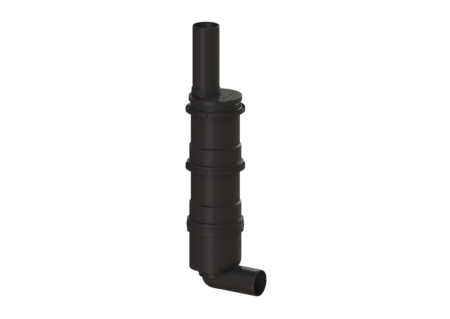

Gutter drain

DN 100, horizontal, frost-free depth

The polymer gutter drain is equipped with a sludge bucket, a rain inlet cover, a protective pipe and a wall fastening.

  • The variable solution for connecting to the sewer
Item no. 67970
GTIN 4026092001882
Price group 10

    Gutter drain DN 100, horizontal, frost-free depth
    The polymer gutter drain is equipped with a sludge bucket, a rain inlet cover, a protective pipe and a wall fastening. Variant System: 200 Contents of sludge trap: yes Discharge rate (l/s) with 20 mm backwater: 2,8 Outlet: horizontal General characteristics Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm Outlet: horizontal Dimensions Net weight: 4,48 kg Gross weight: 5,34 kg Diameter: 235 mm Width: 245 mm Height: 1060 mm Length: 320 mm Packaging dimension: width: 330 mm Packaging dimension: height: 240 mm Packaging dimension: length: 790 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer System: lateral Coverage features Type of cover: Rain drain cover Cover material: Polymer Colour of cover: black Surface: EDM Load class: K 3 (EN 1253-1) Shape of upper section: round Contents of sludge trap: yes Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Upper section 40-150mm 67400 Show
    Extension section System 200, Polymer 67500 Show
    Extension section System 200, Side inlet DN 100 67600 Show
      Title Item no.
    Odour trap Gutter drains, Seal. water height 100 mm 27171 Show
    Drain body, yard/gutter drain DN 100, Horizontal outlet 67000 Show
    Sludge bucket System 200, PE-HD 67300 Show
    Extension section System 200, Polymer 67500 Show
    Upper section, gutter drain Protective pipe DN 100, closed cover 67750 Show
    Wall mounting Polymer, for gutter drains 67800 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Polymer
    • System (stutzen_ausfuehrung): lateral
    • Type of cover (abdeckungsart): Rain drain cover
    • Odour trap (geruchsverschluss): included
    • Contents of sludge trap (schlammeimer): yes
