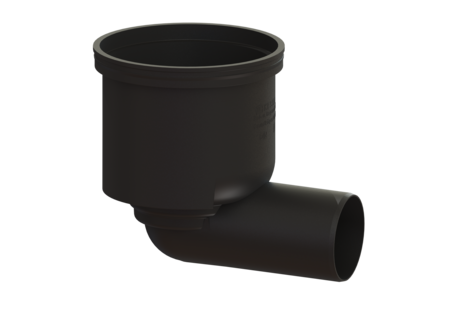

Drain body, yard/gutter drain

DN 100, Horizontal outlet

The drain body for yard and gutter drains is made of polymer and, in this version, does not include an odour trap.

  • Variable solution for the connection to the sewer
  • For easy underground installation
Item no. 67000
GTIN 4026092001585
Price group 10

    Drain body, yard/gutter drain DN 100, Horizontal outlet
    The drain body for yard and gutter drains is made of polymer and, in this version, does not include an odour trap. Variant System: 200 Discharge rate (l/s) with 20 mm backwater: 4,5 General characteristics Nominal size (DN): 100 Outer diameter (OD): 110 mm Dimensions Net weight: 1,1 kg Gross weight: 1,1 kg Width: 235 mm Height: 280 mm Length: 328 mm Packaging dimension: width: 225 mm Packaging dimension: height: 275 mm Packaging dimension: length: 330 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer System: lateral Coverage features Odour trap: no
      Title Item no.
    Ferrofix upper section Sys200, slot grat, 304SST, 200 x 200 mm 57410 Show
    Ferrofix upper section Sys200, slot grat, 304SST, 300 x 300 mm 57415 Show
    Upper section, gutter drain Protective pipe DN 100, Slotted cover 67700 Show
    Upper section, gutter drain Protective pipe DN 100, closed cover 67750 Show
    Cover plate Polymer, d: 218 mm 67775 Show
    Upper section, Ecoguss grid 67985 Show
    Yard drain with slotted cover d: 218 mm, A/L15 67986 Show
      Title Item no.
      Title Item no.
    KESSEL locking and removal key 67007 Show
    Upper section 40-150mm 67400 Show
    Extension section System 200, Polymer 67500 Show
    Extension section System 200, Side inlet DN 100 67600 Show
    Wall mounting Polymer, for gutter drains 67800 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • System (stutzen_ausfuehrung): lateral
    • Odour trap (geruchsverschluss): no
    • Length (laenge): 328  mm
    • Width (breite): 235  mm
