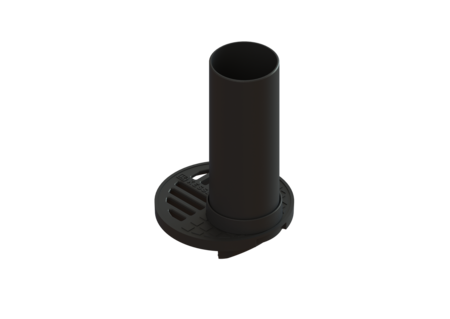

Upper section, gutter drain

Protective pipe DN 100, Slotted cover

Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for use as a gutter drain. The upper section consists of a rain inlet cover and a protective pipe.

  • The variable solution for connecting to the sewer
Item no. 67700
GTIN 4026092001691
Price group 10

    Upper section, gutter drain Protective pipe DN 100, Slotted cover
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for use as a gutter drain. The upper section consists of a rain inlet cover and a protective pipe. General characteristics Colour: black Material: Polymer Nominal size (DN): 100 Dimensions Net weight: 0,67 kg Gross weight: 0,74 kg Diameter: 218 mm Width: 218 mm Length: 218 mm Packaging dimension: width: 240 mm Packaging dimension: height: 130 mm Packaging dimension: length: 300 mm Coverage features Type of cover: Slotted cover Cover material: Polymer Colour of cover: black
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Slotted cover round, d: 362 mm, Polymer 850134 Show
    CAD Data
    • Nominal size (DN) (nennweite): 100
    • Material (material): Polymer
    • Cover material (abdeckung_material): Polymer
    • Type of cover (abdeckungsart): Slotted cover
    • (geruchsverschluss):
    • (stutzen_ausfuehrung):
    • (schlammeimer):
