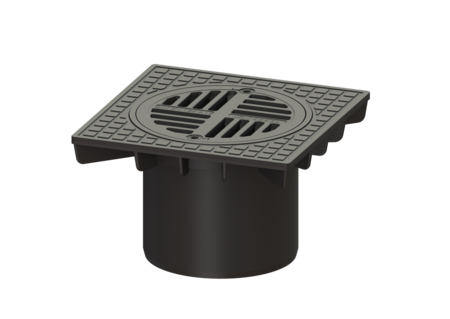

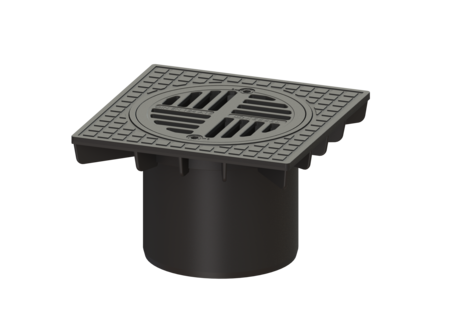

Upper section
with slotted cover d: 218 mm, A/L15
KESSEL Upper section, surface, length 300 mm, width 300 mm, locking, design cover, Cover Polymer
- Multiple combinations with suitable drain bodies
| Item no. | 67986 |
|---|---|
| GTIN | 4026092085493 |
| Price group | 10 |
Upper section with slotted cover d: 218 mm, A/L15
The vertically adjustable polymer upper section is suitable for point drainage when used in combination with a drain body from the KESSEL 200 modular system. Variant System: 200 Dimensions Net weight: 4,4 kg Gross weight: 4,9 kg Diameter: 218 mm Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 340 mm Packaging dimension: width: 340 mm Packaging dimension: height: 215 mm Coverage features Cover material: Polymer Colour of cover: black Load class: A 15 (EN 124) Rim width: 300 mm Rim length: 300 mm Upper section material: Polymer
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| CAD Data |
- Cover material (abdeckung_material):
Polymer
- Upper section material (material_aufsatzstueck):
Polymer
- (nennweite):
- (abdeckungsart):
- Load class (belastungsklasse): A 15 (EN 124)
- Socket version (stutzen_ausfuehrung):
