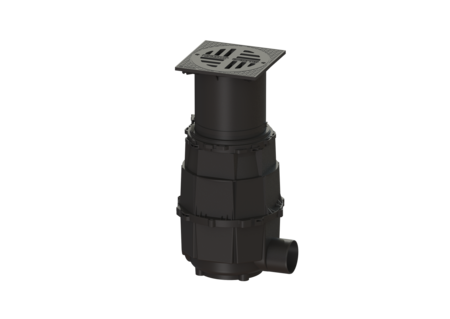

Yard drain System 400, DN 150, B, up to 1080 mm
The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment. Variant System: 400 Heating: without Contents of sludge trap: yes Sealing water height: 100 mm Discharge rate (l/s) with 20 mm threshold: 4,5 General characteristics Colour: black Standard: EN 752 Nominal size (DN): 150 Outer diameter (OD): 160 mm Odour trap: included Dimensions Net weight: 47,5 kg Gross weight: 47,5 kg Groundwater resistant from lower edge of base section: 500 mm Cutout dimension, width: 535 mm Cutout dimension, length: 585 mm Min. insertion depth: 55 mm Installation depth: 730 - 1080 mm Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 585 mm Packaging dimension: width: 535 mm Packaging dimension: height: 1080 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: lateral Coverage features Type of cover: Round slotted cover Cover material: Grey iron Colour of cover: black Width of cover: 400 mm Length of cover: 400 mm Surface: EDM Load class: B 125 (EN 124) Rim width: 400 mm Rim length: 400 mm Shape of upper section: square Contents of sludge trap: yes
Yard drain
System 400, DN 150, B, up to 1080 mm
KESSEL Yard drain, nominal size (DN) 150, installation depth 730 - 1080 mm, load class B 125, odour trap included, cover width 400 mm, cover length 400 mm, drainage by Point drain
- Different load classes available
- Height-adjustable complete system
- Easy underground installation
| Item no. | 851152B |
|---|---|
| GTIN | 4026092004418 |
| Price group | 10 |

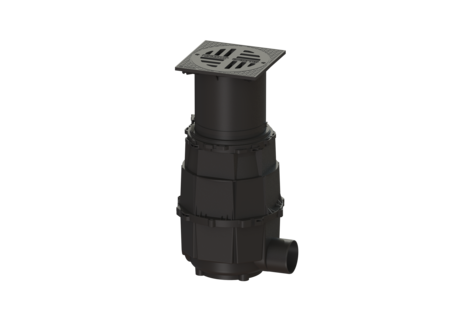

Yard drain System 400, DN 150, B, up to 1080 mm
The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment. Variant System: 400 Heating: without Contents of sludge trap: yes Sealing water height: 100 mm Discharge rate (l/s) with 20 mm threshold: 4,5 General characteristics Colour: black Standard: EN 752 Nominal size (DN): 150 Outer diameter (OD): 160 mm Odour trap: included Dimensions Net weight: 47,5 kg Gross weight: 47,5 kg Groundwater resistant from lower edge of base section: 500 mm Cutout dimension, width: 535 mm Cutout dimension, length: 585 mm Min. insertion depth: 55 mm Installation depth: 730 - 1080 mm Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 585 mm Packaging dimension: width: 535 mm Packaging dimension: height: 1080 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: lateral Coverage features Type of cover: Round slotted cover Cover material: Grey iron Colour of cover: black Width of cover: 400 mm Length of cover: 400 mm Surface: EDM Load class: B 125 (EN 124) Rim width: 400 mm Rim length: 400 mm Shape of upper section: square Contents of sludge trap: yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Hole saw for DN 100/125/150 | 500100 | Show |
| Hole saw for DN 50/70/100 | 500101 | Show |
 | Pressure sealing flange f. upper sect. LW400 in waterrpr. conc. | 83021 | Show |
 | Membrane for System 400, Waterproof concrete | 83022 | Show |
 | Extension section System 400, Polymer | 850101 | Show |
 | Adapter d: 450 mm, with seal | 850102 | Show |
 | Adapter d: 358 mm, with seal | 850103 | Show |
 | Seal for pipe penetration, DN 50 | 850114 | Show |
 | Seal for pipe penetration, DN 70 | 850116 | Show |
 | Seal for pipe penetration, DN 100 | 850117 | Show |
 | Seal for pipe penetration, DN 125 | 850118 | Show |
 | Seal for pipe penetration, DN 150 | 850119 | Show |
 | Cover plate Grey iron, Class B | 850131 | Show |
 | Lifting tool for System 400 odour trap | 850143 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Drain body, yard/gutter drain with outlet, DN 150, d: 450 mm | 850010 | Show |
| Extension section System 400, Polymer | 850101 | Show |
| Adapter d: 358 mm, with seal | 850103 | Show |
 | Connection wed Polymer, 4 each | 850111 | Show |
 | Seal d: 368 mm | 850112 | Show |
 | Seal d: 458 mm | 850113 | Show |
 | Sludge bucket System 400, Polymer | 850115 | Show |
 | Upper section height-adjustable, cl. A/B | 850120 | Show |
 | Slotted cover round, d: 362 mm, Grey iron | 850135 | Show |
 | Odour trap for yard drains, DN 150 | 850142 | Show |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data |
- Nominal size (DN) (nennweite): 150
- Material of drain body (material_grundkoerper):
Polymer
- Socket version (stutzen_ausfuehrung):
lateral
- Cover material (abdeckung_material): Grey iron
- Load class (belastungsklasse): B 125 (EN 124)
- Installation depth (einbautiefe): 730 mm
- Odour trap (geruchsverschluss): included
- (form_Aufsatzstueck):
- Contents of sludge trap (schlammeimer): yes
