Yard drain

Sys 200, horizontal, slot grat., A 15

67020.30
PDF product data sheet

KESSEL Yard drain, nominal size (DN) 100, drainage by Point drain, load class A 15, socket lateral, drain body Polymer, upper section material Polymer

Item no. 67020.30
GTIN 4026092003787
Price group 10

    Yard drain Sys 200, horizontal, slot grat., A 15

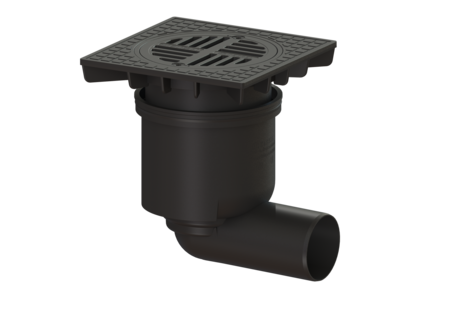

    The polymer yard drain is used for point drainage and is equipped with a lip seal as well as a temporary protective cover. Variant System: 200 Discharge rate (l/s) with 20 mm threshold: 4,5 General characteristics Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: no Dimensions Vertical adjustment: 40 - 150 mm Net weight: 3,09 kg Gross weight: 3,48 kg Packaging dimension: length: 330 mm Packaging dimension: width: 330 mm Packaging dimension: height: 375 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: lateral Coverage features Type of cover: Round slotted cover Cover material: Polymer Colour of cover: black Width of cover: 300 mm Length of cover: 300 mm Surface: EDM Frame material: Polymer Locking: placed Load class: A 15 (EN 124) Rim width: 300 mm Rim length: 300 mm Shape of upper section: square Upper section material: Polymer
