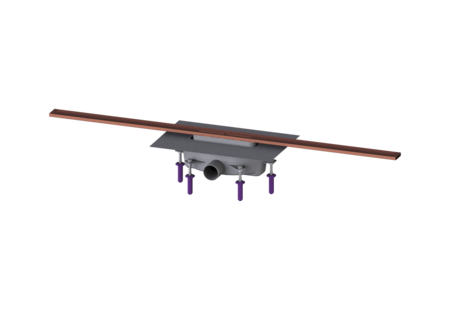

Shower chan. Linearis Infinity 90

L: 1100 mm, DN50, Copper, brushed

The narrow Linearis Infinity channel for walk-in showers is suitable for indoor linear drainage for household and commercial use. The channel profile made of 316 stainless steel can be extended straight or at three (30, 45 and 90 degree) angles. The drain body made of PP is equipped with sound and settlement absorbers. The channel contains a clip-on flange with factory-mounted waterproofing membrane to EN 1253-1 and DIN 18534-1-W3-I. The channel profile can be pushed in the lengthwise and transverse direction in the clip-on flange to level out construction tolerance. Including odour trap with 50 mm water seal. Open seepage water openings, without flooding of the waterproofing level in the event of backwater.

  • Channel profile made of 316 stainless steel
  • Including Sound and settlement absorbers
  • No flooding of the waterproofing level in the event of water build-up
Item no. 45203.11
GTIN 4026092094419
Price group 10

    Shower chan. Linearis Infinity 90 L: 1100 mm, DN50, Copper, brushed
    The narrow Linearis Infinity channel for walk-in showers is suitable for indoor linear drainage for household and commercial use. The channel profile made of 316 stainless steel can be extended straight or at three (30, 45 and 90 degree) angles. The drain body made of PP is equipped with sound and settlement absorbers. The channel contains a clip-on flange with factory-mounted waterproofing membrane to EN 1253-1 and DIN 18534-1-W3-I. The channel profile can be pushed in the lengthwise and transverse direction in the clip-on flange to level out construction tolerance. Including odour trap with 50 mm water seal. Open seepage water openings, without flooding of the waterproofing level in the event of backwater. Variant Water supply: W3-I Sealing water height: 50 mm Discharge rate (l/s) with 10 mm backwater: 0,6 Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Nominal size (DN): 50 Dimensions Net weight: 3,1 kg Gross weight: 3,1 kg Min. design height: 90 mm Vertically adjustable: yes Width: 111 mm Length: 264 mm Packaging dimension: width: 256 mm Packaging dimension: height: 110 mm Packaging dimension: length: 1112 mm Tank/drain body Outlet nominal size (OD): 50 mm Outlet nominal size (DN): 50 Material of drain body: PP System: lateral Coverage features Type of cover: Stainless steel cover Cover material: 316 stainless steel Width of cover: 45 mm Length of cover: 1100 mm Min. flooring height: 11 mm Surface: Copper brushed Cover locking: placed Load class: K 3 (EN 1253-1) Max. flooring height: 25 mm Shape of upper section: square Odour trap: with 50 mm water seal

    Video

    Installation Video

      Title Item no.
      Title Item no.
      Title Item no.
    Odour trap Megastop for Linearis Infinity shower channel 45100 Show
    Hair filter for Linearis Infinity shower channel 45102 Show
    Connector straight, f. Linearis Infinity 45103 Show
    Connecting piece, 90 degree for Linearis Infinity, Copper, brushed 45103.01 Show
    Connecting piece, 45 degree for Linearis Infinity, Copper, brushed 45103.02 Show
    Connecting piece, 30 degree for Linearis Infinity, Copper, brushed 45103.03 Show
      Title Item no.
    Odour trap for Linearis Infinity shower chan. 50 mm 680942 Show
    Insert grating for Linearis Infinity, Copper, brushed 680947 Show
    Removal aid for Linearis Infinity odour trap 680948 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): 316 stainless steel
    • System (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): with 50 mm water seal
    • Outlet nominal size (DN) (auslauf_nennweite_dn): 50
    • Length of cover (abdeckung_laenge): 1,100  mm
