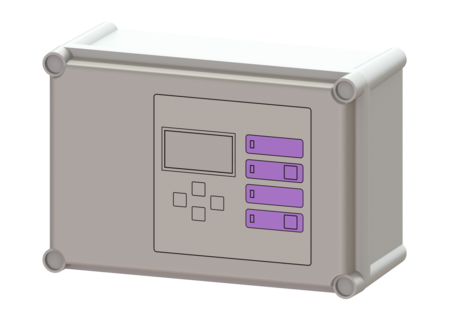

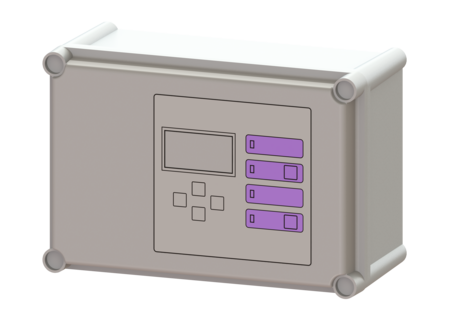

Comfort control unit
Mono, 400 V, 4.0-6.3 A
Control unit, Comfort 400 V Mono 4.0-6.3 A
| Item no. | 680615 |
|---|---|
| GTIN | 4026092078594 |
| Price group | 90 |
Comfort control unit Mono, 400 V, 4.0-6.3 A
Control unit, Comfort 400 V Mono 4.0-6.3 A General characteristics System type: Mono Dimensions Net weight: 2,53 kg Gross weight: 2,88 kg Packaging dimension: length: 330 mm Packaging dimension: width: 250 mm Packaging dimension: height: 210 mm Pumping device Connection type: Direct connection Type of fuse required (pump): C 16 A Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: no Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Test Reports and Certificates |
- Control unit (schaltgeraet):
Comfort
