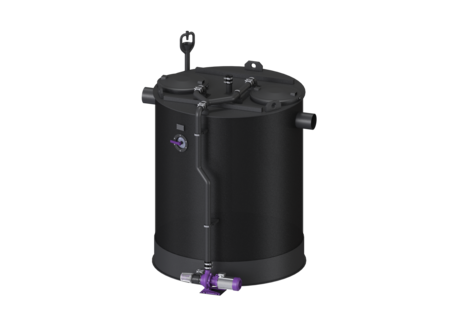

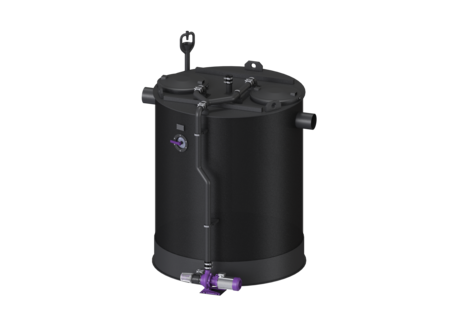

EasyClean round grease separator
free, NS 20, Auto Mix
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and is manufactured without the need for metallic internal structural components. The collection tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has sloped sides in the base to promote fast and efficient disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix System with integrated macerating system homogenises and circulates the tank contents. Cleaning is carried out via an exterior pump which can be disconnected from the tank by a shut-off valve. A direct disposal pipe socket is available for odour-neutral manual disposal. The fully-automatic program run is controlled by a user-friendly control unit with multi-line display that can be integrated into the building management system via a potential-free contact. Cleaning and disposal can be started remotely using the remote control, which is available as an option. Thanks to the customisable cleaning program with fast-selection function, cleaning can be adapted to the local circumstances as required. Compliance with the German Drinking Water Hygiene Ordinance can be ensured by fully-automatic rinsing of the drinking water pipes. 20 year polyethylene warranty.
- Clean and odour-free disposal and cleaning
- Customisation possible through control unit
- Low-maintenance operation
| Item no. | 93020.05/DSP |
|---|---|
| Price group | 60 |
EasyClean round grease separator free, NS 20, Auto Mix
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and is manufactured without the need for metallic internal structural components. The collection tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has sloped sides in the base to promote fast and efficient disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix System with integrated macerating system homogenises and circulates the tank contents. Cleaning is carried out via an exterior pump which can be disconnected from the tank by a shut-off valve. A direct disposal pipe socket is available for odour-neutral manual disposal. The fully-automatic program run is controlled by a user-friendly control unit with multi-line display that can be integrated into the building management system via a potential-free contact. Cleaning and disposal can be started remotely using the remote control, which is available as an option. Thanks to the customisable cleaning program with fast-selection function, cleaning can be adapted to the local circumstances as required. Compliance with the German Drinking Water Hygiene Ordinance can be ensured by fully-automatic rinsing of the drinking water pipes. 20 year polyethylene warranty. Variant Shut-off valve: yes Disposal variant: Auto Mix Protection class motor: yes Sludge bucket: yes Nominal size (NS): 20 SonicControl: no Disposal system: Disposal connection Type of disposal: automatic cleaning system Shaft seal: 2 solenoid valves 1" Load-bearing capacity (DIN 19901): F3 General characteristics Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 710 kg Gross weight: 710 kg Set-up area, width: 1922 mm Set-up area, height: 2300 mm Set-up area, length: 2230 mm Required access area, width: 1880 mm Required access area, height: 2300 mm Required access area, length: 2230 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1850 mm Distance pipe bottom inlet to tank bottom: 1920 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 Inlet nominal size (DN): 200 mm Inlet nominal size (DN): 200 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Cover locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 2650 l Total volume: 4650 l Hose: 2000 l Storage quantity of light liquid: 800 l Pumping device Pump control: SPF 300 KE 2.0 Number of pumps: 2 Connection type: Direct connection Rated current: 6,2 A Length of mains cable for pump: 5 m Self-diagnosis system (SDS): I Protection class control unit: IP 55 DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Control Motor protection switch: yes Type of fuse required (RCD): 30 mA Protection class probe: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: no USB interface: no Log book function: yes Multi-line display: yes Battery buffering: no Self-diagnosis system (SDS): yes Max. permissible switching frequency: yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Control unit (schaltgeraet):
yes
- Cover material (abdeckung_material):
Polymer
- Disposal system (entsorgungseinrichtung):
Disposal connection
- Protection class motor (schredder_mix_system):
yes
- Nominal size (NS) (nenngroesse): 20
- Sludge bucket (schauglas): yes
