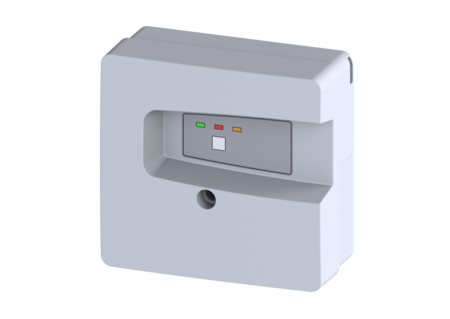

Basic alarm unit
with electronic probe
Basic alarm unit with electronic probe for conductive liquids, monitoring and reporting of floods caused by defects in pipes, basement drains or washing machines. With optical and acoustic alarm signal, integrated battery back-up for alarm, and log book (diary function) for reading out past operating states, connection option for remote signal generator or can be retrofitted with potential-free contact.
| Item no. | 20222 |
|---|---|
| GTIN | 4026092079355 |
| Price group | 20 |
Basic alarm unit with electronic probe
Basic alarm unit with electronic probe for conductive liquids, monitoring and reporting of floods caused by defects in pipes, basement drains or washing machines. With optical and acoustic alarm signal, integrated battery back-up for alarm, and log book (diary function) for reading out past operating states, connection option for remote signal generator or can be retrofitted with potential-free contact. Dimensions Net weight: 1,15 kg Gross weight: 1,3 kg Packaging dimension: length: 320 mm Packaging dimension: width: 200 mm Packaging dimension: height: 110 mm Pumping device Connection type: Schuko (earthed contact) 2-pin Control Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 5 m
