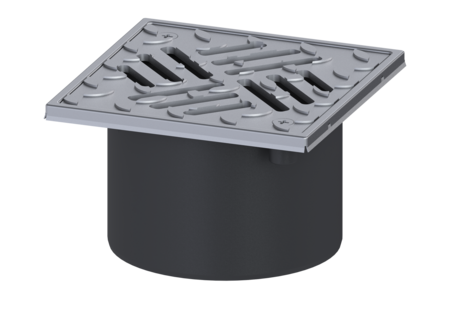

Upper section
Slotted cover, anti-slip, L 15
KESSEL Upper section, frame material Stainless steel 14301, length 150 mm, width 150 mm, type of cover Slotted cover, locking screwed, design cover, Cover Stainless steel 14301, waterproofing layer upper section by
- Multiple combinations with suitable drain bodies
| Item no. | 48176 |
|---|---|
| GTIN | 4026092053706 |
| Price group | 70 |
Upper section Slotted cover, anti-slip, L 15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. General characteristics Sustainable: through the use of recycled material Dimensions Net weight: 0,71 kg Gross weight: 0,87 kg Height: 93 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 18 mm Frame material: Stainless steel 14301 Locking: screwed Load class: L 15 (EN 1253-1) Slip resistance class: R11 according to DIN 51130; C according to DIN 51097 Rim width: 150 mm Rim length: 150 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
