Upper section

Black slotted cover , 150 x 150 mm, K 3

48193
48193
PDF product data sheet

KESSEL Upper section, frame material ABS, length 150 mm, width 150 mm, type of cover Slotted cover, locking placed, design cover Kessel, Cover ABS, waterproofing layer upper section by

  • Multiple combinations with suitable drain bodies
Item no. 48193
GTIN 4026092034231
Price group 10

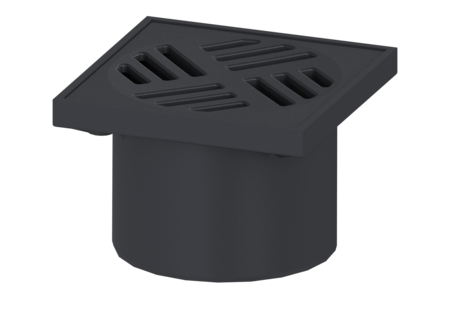

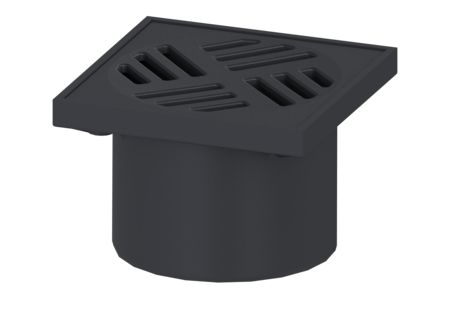

    Upper section Black slotted cover , 150 x 150 mm, K 3
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 General characteristics Sustainable: through the use of recycled material Dimensions Net weight: 0,34 kg Gross weight: 0,38 kg Height: 100 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 100 mm Coverage features Type of cover: Slotted cover Cover material: ABS Colour of cover: black Height of cover: 16 mm Min. flooring height: 25 mm Frame material: ABS Locking: placed Load class: K 3 (EN 1253-1) Grating design: Kessel Rim width: 150 mm Rim length: 150 mm Max. flooring height: 67 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    60101S Slotted cover 138x138 mm, Polymer 60101S Show
    • Cover material (abdeckung_material): ABS
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
