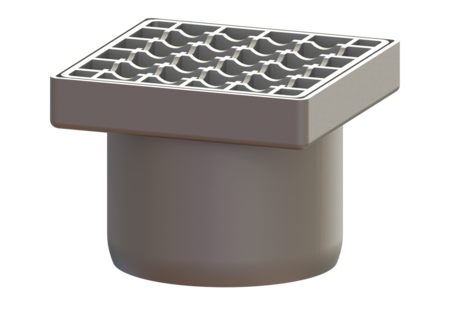

Ferrofix upper section
Sys 125, Slotted grating, 150 x 150 mm
KESSEL Ferrofix upper section, length 150 mm, width 150 mm, type of cover Slotted cover, locking unlocked, design cover, Cover Stainless steel 14301, waterproofing layer upper section by Connection flange
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 54914 |
|---|---|
| GTIN | 4026092072448 |
| Price group | 70 |
Ferrofix upper section Sys 125, Slotted grating, 150 x 150 mm
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Variant System: 125 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Connection flange Dimensions Net weight: 2,08 kg Gross weight: 2,17 kg Height: 100 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 28 mm Surface: pickled Cover locking: unlocked Load class: L 15 / M 125 (EN 1253-1) Rim length: 150 mm Rim material: 150 mm Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
