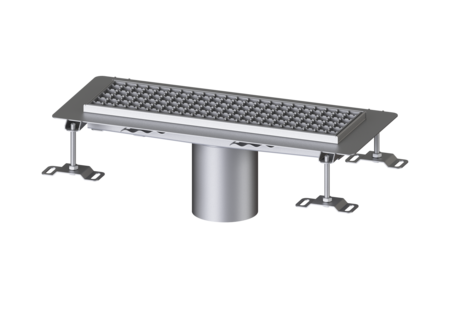

Box channel Ferrofix
glued flange H: 15mm, 153x511mm
KESSEL Box channel Ferrofix, nominal size (DN) 125, Glued flange height 15 mm, length 511 mm, width 153 mm, type of cover Slotted cover, upper section material Stainless steel 14301, outside diameter (OD) 125 mm
- Made of particularly a hygienic and mechanically highly resistant stainless steel
- Variably combinable with suitable drain bodies
| Item no. | 6015050 |
|---|---|
| GTIN | 4026092066461 |
| Price group | 80 |
Box channel Ferrofix glued flange H: 15mm, 153x511mm
Variant Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water supply: W3-I Glued flange height: 15 mm General characteristics Nominal size (DN): 125 Outer diameter (OD): 125 mm Glued flange height: 15 mm purchasable by service partner: No Dimensions Net weight: 4 kg Gross weight: 4 kg Length: 511 mm Width: 153 mm Height: 60 mm Packaging dimension: length: 542 mm Packaging dimension: width: 158 mm Packaging dimension: height: 55 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Cover locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
125
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Slotted cover
- Length (laenge): 511 mm
- Width (breite): 153 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
- (oberflaeche):
