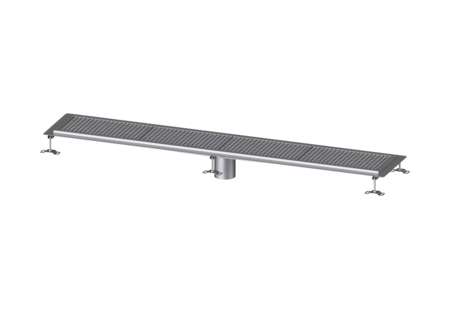

Box channel Ferrofix
glued flange H: 15mm, 300x2050mm
- Made of particularly a hygienic and mechanically highly resistant stainless steel
- Variably combinable with suitable drain bodies
| Item no. | 6030200 |
|---|---|
| GTIN | 4026092054697 |
| Price group | 80 |
Box channel Ferrofix glued flange H: 15mm, 300x2050mm
Variant Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water supply: W3-I Glued flange height: 15 mm General characteristics Nominal size (DN): 125 Outer diameter (OD): 125 mm Glued flange height: 15 mm Dimensions Net weight: 31 kg Gross weight: 31 kg Width: 300 mm Height: 60 mm Length: 2050 mm Packaging dimension: width: 490 mm Packaging dimension: height: 350 mm Packaging dimension: length: 2180 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Cover locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
125
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Slotted cover
- Length (laenge): 2,050 mm
- Width (breite): 300 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
- (oberflaeche):
