SonicControl cable gland
Underground separator installation set

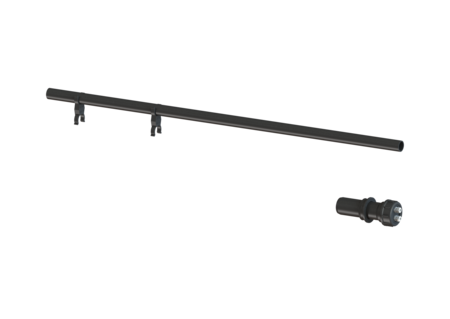

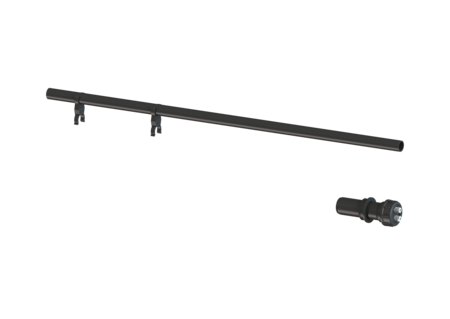

Penetration set with telescopic extension pipe, clips, seal as well as cable gland for lead-through of the sensor cable of the SonicControl layer thickness measuring device for grease separators installed in the ground. The extension length of the tube for housing the sensor is 1,150 mm Note: A PE-HD cable duct (OD 50 mm) must be provided on site; the maximum distance between the separator and the measuring instrument, which must be installed frost-free, is 60 m.
| Item no. | 917823 |
|---|---|
| GTIN | 4026092092392 |
| Price group | 60 |
SonicControl cable gland Underground separator installation set
Penetration set with telescopic extension pipe, clips, seal as well as cable gland for lead-through of the sensor cable of the SonicControl layer thickness measuring device for grease separators installed in the ground. The extension length of the tube for housing the sensor is 1,150 mm Note: A PE-HD cable duct (OD 50 mm) must be provided on site; the maximum distance between the separator and the measuring instrument, which must be installed frost-free, is 60 m. General characteristics Material: PE-HD Nominal size (DN): 50 Dimensions Net weight: 0,23 kg Gross weight: 0,34 kg Length: 190 mm Packaging dimension: length: 218 mm Packaging dimension: width: 218 mm Packaging dimension: height: 120 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet |
|---|
- Nominal size (DN) (nennweite):
50
