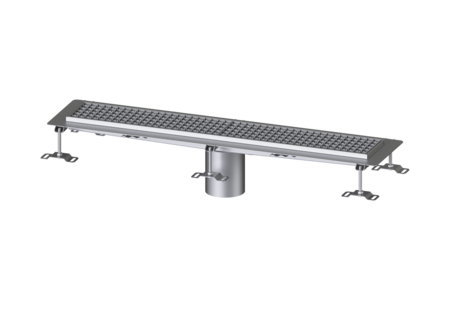

Ferrofix box channel
glued flange H: 15mm, 153x1011mm
The Ferrofix box channel made of stainless steel with a material thickness of 2.0 mm (pickled in the immersion bath) is equipped with polished visible ridges, longitudinal and transverse slopes, feet for height adjustment and stainless steel outlet nozzles. The channel profile is suitable for installation situations with high thermal loads. The tile connection angle profile protects against tile breakage at the edge.
- Made of particularly a hygienic and mechanically highly resistant stainless steel
- Variably combinable with suitable drain bodies
| Item no. | 6015100 |
|---|---|
| GTIN | 4026092054642 |
| Price group | 80 |
Ferrofix box channel glued flange H: 15mm, 153x1011mm
Variant Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water supply: W3-I Glued flange height: 15 mm General characteristics Nominal size (DN): 125 Outer diameter (OD): 125 mm Glued flange height: 15 mm Dimensions Net weight: 7 kg Gross weight: 7 kg Width: 153 mm Height: 60 mm Length: 1011 mm Packaging dimension: width: 400 mm Packaging dimension: height: 270 mm Packaging dimension: length: 1120 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Cover locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
125
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Slotted cover
- Length (laenge): 1,011 mm
- Width (breite): 153 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
- (oberflaeche):
