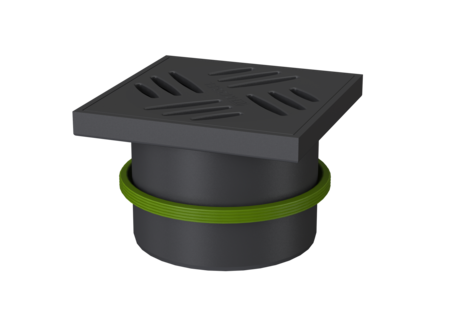

Upper section Ecoguss
Black slotted cover, 150 x 150 mm, K 3
KESSEL Upper section Ecoguss, frame material Ecoguss, length 150 mm, width 150 mm, Cover Ecoguss, locking placed, design cover Kessel, upper section material Ecoguss
| Item no. | 48194 |
|---|---|
| GTIN | 4026092111024 |
| Price group | 40 |
Upper section Ecoguss Black slotted cover, 150 x 150 mm, K 3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Dimensions Net weight: 1,2 kg Gross weight: 1,36 kg Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Coverage features Type of cover: Slotted cover Cover material: Ecoguss Colour of cover: black Height of cover: 16 mm Min. flooring height: 25 mm Frame material: Ecoguss Locking: placed Load class: K 3 (EN 1253-1) Grating design: Kessel Rim width: 150 mm Rim length: 150 mm Max. flooring height: 67 mm Shape of upper section: square Upper section material: Ecoguss
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data |
- Cover material (abdeckung_material):
Ecoguss
- Frame material (rahmen_material):
Ecoguss
- Upper section material (material_aufsatzstueck):
Ecoguss
