Shell Kit
for Ecolift, w/o socket
![](https://assets.kessel.de/pb/640/pb_wgpumpe_21000-rbk_386336.png)
![](https://assets.kessel.de/mz/w640/mz_21000-rbk_386337.png)

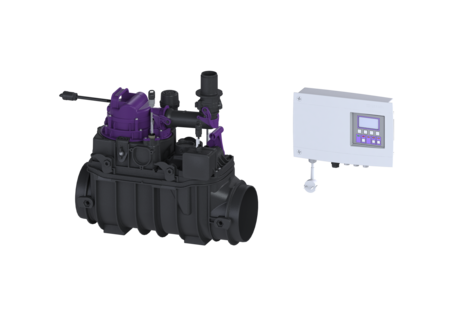

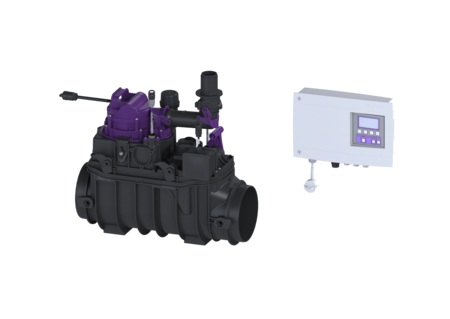

KESSEL Shell Kit for Ecolift, w/o socket, wastewater with sewage, exposed drainage pipe, with submersible pumps
Item no. | 21000-RBK |
---|---|
GTIN | 4026092097144 |
Price group | 20 |
Shell Kit for Ecolift, w/o socket
KESSEL shell kit for Ecolift, without sockets Shell kit consisting of a drain body and upper section. The inlet and outlet sockets are not included. For combination with a KESSEL technology kit for creating an Ecolift backwater lifting station. General characteristics Colour: black Type of wastewater: with sewage Installation situation: exposed drainage pipe Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-487 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) ATEX: no Dimensions Net weight: 8 kg Gross weight: 8,36 kg Groundwater resistant from lower edge of base section: 2000 mm Installation depth: 516 - 669 mm Length: 405 mm Width: 243 mm Height: 405 mm Packaging dimension: length: 785 mm Packaging dimension: width: 385 mm Packaging dimension: height: 465 mm Tank/drain body Nominal pressure (PN): 6 Pressure pipe connection (OD): 40 mm Socket version: optional
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
![]() | Cover Ecolift outlet side | 21056 | Show |
![]() | Pump cover inlet side | 28052 | Show |
![]() | Ventilation with activated carbon filter | 28060 | Show |
![]() | Active carbon filter 5 each | 28061 | Show |
![]() | Control unit Comfort 230V, from 01/2011 | 28071 | Show |
![]() | Replacement pump KTP/SPZ 1000 230 V, cable length 5 m | 28351 | Show |
![]() | One-handed closure for backflow preventer | 680018 | Show |
![]() | Battery 9 V block | 680034 | Show |
![]() | Flap holder for motor-driven and mechanical flap | 680101 | Show |
![]() | Pressure pipe connection Ecolift, installation with exposed pipe | 680102 | Show |
![]() | Seal set Pumpfix, Ecolift | 70319 | Show |
![]() | Motor-driven backwater flap Premium | 80038 | Show |
![]() | Slide-in flap housing for motorised flap with flap holder | 80039 | Show |
![]() | Drive motor plug-in ready, 5 m cable | 80076 | Show |
![]() | Spare part set, optical probe 5 m cable | 80888 | Show |
![]() | Adapter Set optical probe | 80892 | Show |
CAD Data | |
---|---|
Approval |
- (abdeckungsart):
- Installation situation (einbausituation):
exposed drainage pipe
- Type of wastewater (abwasserart_de):
with sewage
