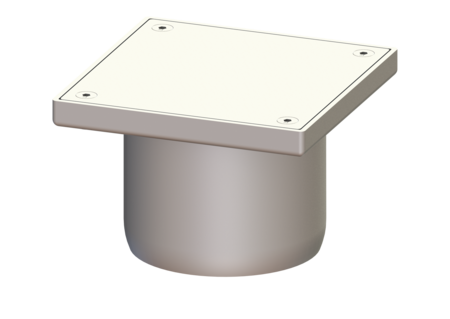

Ferrofix cleanout

Sys 100, odour-tight

The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed, screwed cover plate.

Item no. 27177-PL
GTIN 4026092090879
Price group 70

    Ferrofix cleanout Sys 100, odour-tight
    The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed, screwed cover plate. Variant System: 100 Dimensions Net weight: 2,08 kg Gross weight: 2,18 kg Height: 93 mm Packaging dimension: length: 195 mm Packaging dimension: width: 195 mm Packaging dimension: height: 182 mm Coverage features Type of cover: closed cover plate Cover material: Stainless steel 14301 Width of cover: 146 mm Height of cover: 17 mm Length of cover: 146 mm Surface: Polished SST Cover locking: screwed Load class: L 15 (EN 1253-1) Tightness: odour-tight Shape of upper section: square Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Type of cover (abdeckungsart): closed cover plate
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Cover locking (verriegelung): screwed
    • (abdichtung_aufsatzstueck):
