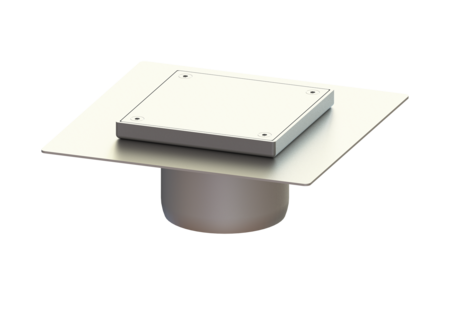

AISI 304 upper section with closed cover
KESSEL, surface, length 146 mm, width 146 mm, type of cover closed cover plate, locking screwed, Cover Stainless steel 14301
| Item no. | 27177-PL-KF |
|---|---|
| GTIN | 4026092090862 |
| Price group | 70 |
The cleanout, made of polymer with grating and frame made of stainless steel, serves as an upper section for direct connection on pipes and is equipped with a closed, screwed cover plate. Variant System: 100 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics Tightness: odour-tight Dimensions Net weight: 2,74 kg Gross weight: 2,9 kg Length: 246 mm Width: 246 mm Height: 93 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Coverage features Type of cover: closed cover plate Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: screwed Load class: L 15 (EN 1253-1) Tightness: odour-tight Rim width: 146 mm Rim length: 146 mm Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): closed cover plate
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Locking (verriegelung): screwed
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Adhesive flange (suitable for moisture barriers)
