Upper section

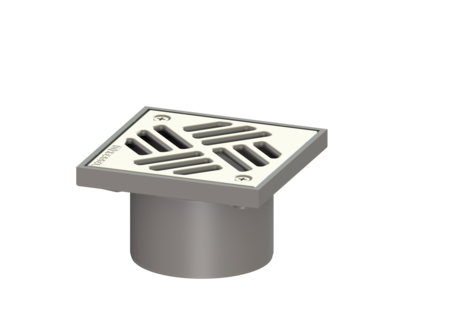

System 100, Slotted cover, screwed, K 3

27191

KESSEL Upper section, height mm, type of cover Slotted cover made of stainless steel, locking screwed, frame material Polymer, design cover

  • Different covers selectable
  • Stainless steel covers
Item no. 27191
GTIN 4026092000380
Price group 10

    Upper section System 100, Slotted cover, screwed, K 3
    Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Dimensions Net weight: 0,42 kg Gross weight: 0,45 kg Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 86 mm Coverage features Type of cover: Slotted cover made of stainless steel Cover material: Stainless steel Width of cover: 138 mm Length of cover: 138 mm Frame material: Polymer Locking: screwed Load class: K 3 (EN 1253-1) Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    27154 Slotted cover 138x138 mm, SST 27154 Show
    27155 Slotted cover 138x138 mm, screwed 27155 Show
    • Cover material (abdeckung_material): Stainless steel
    • Frame material (rahmen_material): Polymer
    • Upper section material (material_aufsatzstueck): ABS
