Upper section

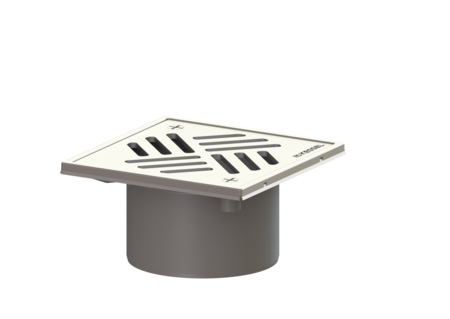

System 100, Slotted cover, K3

KESSEL Upper section, height 86 mm, length 150 mm, width 150 mm, type of cover Slotted cover, locking, frame material Stainless steel 14301, design cover

  • Different covers selectable
  • Stainless steel covers
Item no. 27196
GTIN 4026092005477
Price group 70

    Upper section System 100, Slotted cover, K3
    Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 Dimensions Net weight: 0,35 kg Gross weight: 0,41 kg Height: 86 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 80 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 18 mm Frame material: Stainless steel 14301 Load class: K 3 (EN 1253-1) Rim length: 150 mm Rim material: 150 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Slotted cover solid, screwed 680241 Show
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
