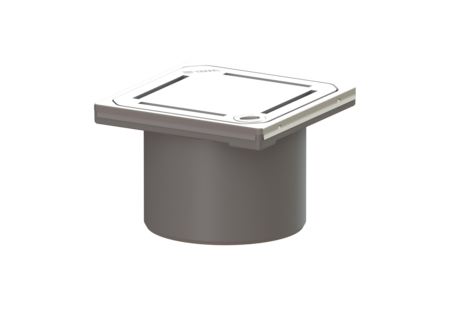

Upper section
System 100, Slot design cover, Lock&Lift
KESSEL Upper section, height 90 mm, length 132 mm, width 132 mm, type of cover Stainless steel cover, locking Lock & Lift, frame material Stainless steel 14301, design cover Slot
- Different covers selectable
- Stainless steel covers
| Item no. | 27219 |
|---|---|
| GTIN | 4026092048634 |
| Price group | 10 |
Upper section System 100, Slot design cover, Lock&Lift
Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 Dimensions Net weight: 0,55 kg Gross weight: 0,56 kg Height: 90 mm Packaging dimension: length: 130 mm Packaging dimension: width: 130 mm Packaging dimension: height: 90 mm Coverage features Type of cover: Stainless steel cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: K 3 (EN 1253-1) Grating design: Slot Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
