Upper section

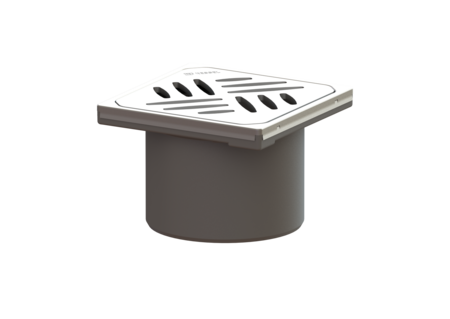

System 100, Kessel design cover, L 15

27225

KESSEL Upper section, height 90 mm, length 132 mm, width 132 mm, type of cover Stainless steel cover, locking, frame material Stainless steel 14301, design cover Kessel

  • Different covers selectable
  • Stainless steel covers
Item no. 27225
GTIN 4026092048696
Price group 10

    Upper section System 100, Kessel design cover, L 15
    Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 Dimensions Net weight: 0,46 kg Gross weight: 0,49 kg Height: 90 mm Packaging dimension: length: 132,5 mm Packaging dimension: width: 132,5 mm Packaging dimension: height: 90,5 mm Coverage features Type of cover: Stainless steel cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Frame material: Stainless steel 14301 Load class: L 15 (EN 1253-1) Grating design: Kessel Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
