Technol. kit Pumpfix S Underfloor

DN 100

280451-TK
280451-TK
PDF product data sheet

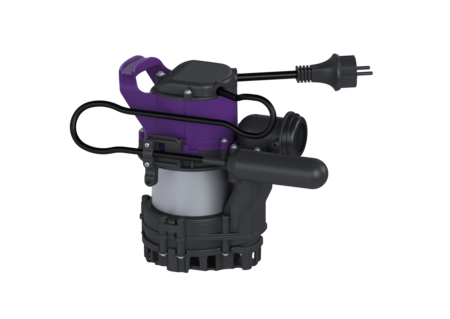

KESSEL Technology kit Pumpfix S Underfloor DN100, with a submersible GTF 500 pump, operating mode S1, Single unit, pumping height 8 m

    Item no. 280451-TK
    GTIN 4026092108079
    Price group 10

      Technol. kit Pumpfix S Underfloor DN 100
      For combination with a KESSEL shell kit for creating a Pumpfix S Underfloor backwater pumping station. The backwater pumping station for wastewater without sewage is equipped with one pump and two mechanical backwater valves which close automatically in the event of backwater. Normally, drainage takes place through the natural gradient to the sewer. During the backwater phase, drainage takes place through the integrated pump protecting against backwater pressure directly into the sewage channel. KESSEL technology kit consisting of: - Pump suitable for permanent operation with multi-vane vortex impeller for maximum operating safety - Includes float switch for level measurement Variant Type of system: Single unit Pump control: Float switch Dimensions Net weight: 5,5 kg Gross weight: 6,3 kg Packaging dimension: length: 276 mm Packaging dimension: width: 241 mm Packaging dimension: height: 265 mm Pumping device Pump: GTF 500 Number of pumps: 1 Weight, pump: 6 kg Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Protection class: I Insulation class: F Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 8 m³/h Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Type of fuse required (pump): C 16 A Length of mains cable for pump: 5 m Rated current: 2,7 A Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • (schaltgeraet):
      • Number of pumps (anzahl_pumpen): 1
      • Resistant (resistant):
