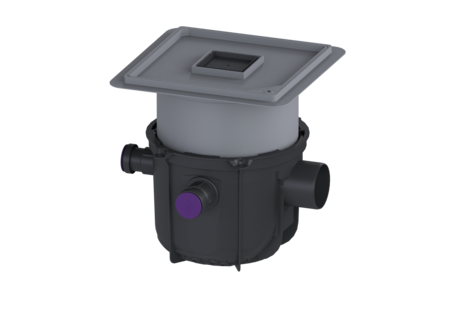

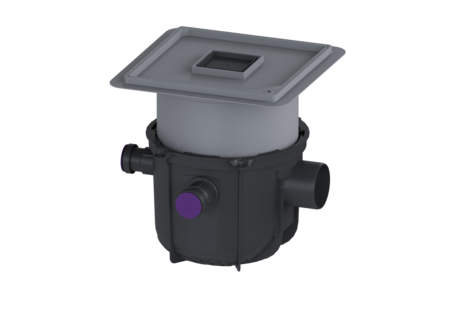

Shell Kit Pumpfix S Underfloor

DN 100, tileable

280451X-RBK
280451X-RBK
PDF product data sheet

KESSEL Shell Kit for Pumpfix S UF, DN100, tileable, wastewater without sewage, with submersible pumps, type of cover tileable cover plate

Item no. 280451X-RBK
GTIN 4026092106808
Price group 10

    Shell Kit Pumpfix S Underfloor DN 100, tileable
    For combination with a KESSEL technology kit for creating a Pumpfix S Underfloor backwater pumping station. The backwater pumping station for wastewater without sewage is equipped with one pump and two mechanical backwater valves which close automatically in the event of backwater. Normally, drainage takes place through the natural gradient to the sewer. During the backwater phase, drainage takes place through the integrated pump protecting against backwater pressure directly into the sewage channel. KESSEL shell kit consisting of: - Drain body with vertically adjustable upper section for continuous height and level compensation and integrated floor drain - System suitable for installation in waterproof concrete, groundwater resistant up to 3 m - Backwater protection according to EN 13564 Type 5 - Includes DN 50 connection socket for inlet and conduit pipe Variant Note on installation depth: System suitable for installation in waterproof concrete Discharge rate (l/s) with 20 mm threshold: 1,6 General characteristics Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Delivery state: plug-in ready Backwater protection: Type 5 Dimensions Net weight: 6,61 kg Gross weight: 6,61 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 600 mm Cutout dimension, length: 600 mm Installation depth: 330 - 460 mm Length: 485 mm Width: 380 mm Packaging dimension: length: 445 mm Packaging dimension: width: 445 mm Packaging dimension: height: 466 mm Tank/drain body Connection conduit pipe (DN): 50 Inlet nominal size (DN): 50 Coverage features Type of cover: tileable cover plate Cover material: Polymer Colour of cover: selectable Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Rim width: 380 mm Rim length: 380 mm Max. flooring height: 16 mm Shape of upper section: square
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Cover material (abdeckung_material): Polymer
    • Type of wastewater (abwasserart_de): without sewage
    • Type of cover (abdeckungsart): tileable cover plate
    • Pump (pumpe):
    • (einbausituation):
