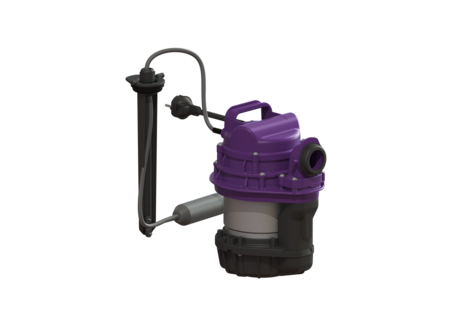

Replacement pump KTP/SPZ 1000

230 V, with float switch

PDF product data sheet
Item no. 28301
GTIN 4026092038413
Price group 90

    Replacement pump KTP/SPZ 1000 230 V, with float switch
    Variant Pump control: Float switch General characteristics Standard: EN 12050-1 Type of wastewater: with sewage Dimensions Net weight: 10,47 kg Gross weight: 10,8 kg Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: SPZ 1000 Connection type: Schuko (earthed contact) 2-pin Rated current: 5,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,7 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Rated current: 5,2 A
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    KTP1000 cutting assembly replacement set 28075 Show
    Impeller KTP/SPZ 1000, without intake cover 680035 Show
    • Type of wastewater (abwasserart_de): with sewage
