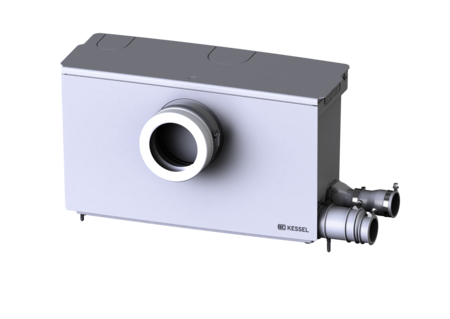

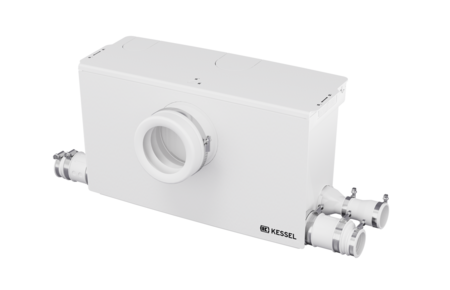

Lifting station Minilift L WC

Dry, SPZ 750-S3 230V

28522

The plug-in ready Minilift L WC small lifting station is suitable for the disposal of domestic blackwater, ideal for connecting a toilet, bidet, shower and washbasin. The dry-installed pump can be removed without the use of tools. The pumping volume can be adjusted via the pressure sensor system using a rotary switch and can therefore be optimally adapted for all requirements. The changeable toilet connection allows a toilet to be connected to the front or side of the tank. As a result of this and the extremely compact design, the system is ideal for all locations, for free-standing setup or installation behind a false wall. The deep horizontal inlets in size DN40 or DN50 make it ideally suited for connecting flat shower trays. A vertical inlet is available in size DN40. The simple and tool-free handling ensures fast installation and flexible use. - Powerful, dry-installed pump with macerator for maximum operating safety and hygiene - Alarm function with optional forwarding (potential-free contact) - Either a vertical or horizontal pressure pipe connection - Discharge-side backflow preventer integrated in the factory - Resistant to hot water - Tool-free maintenance

Item no. 28522
GTIN 4026092111697
Price group 15

    Lifting station Minilift L WC Dry, SPZ 750-S3 230V
    The plug-in ready Minilift L WC small lifting station is suitable for the disposal of domestic blackwater, ideal for connecting a toilet, bidet, shower and washbasin. The dry-installed pump can be removed without the use of tools. The pumping volume can be adjusted via the pressure sensor system using a rotary switch and can therefore be optimally adapted for all requirements. The changeable toilet connection allows a toilet to be connected to the front or side of the tank. As a result of this and the extremely compact design, the system is ideal for all locations, for free-standing setup or installation behind a false wall. The deep horizontal inlets in size DN40 or DN50 make it ideally suited for connecting flat shower trays. A vertical inlet is available in size DN40. The simple and tool-free handling ensures fast installation and flexible use. - Powerful, dry-installed pump with macerator for maximum operating safety and hygiene - Alarm function with optional forwarding (potential-free contact) - Either a vertical or horizontal pressure pipe connection - Discharge-side backflow preventer integrated in the factory - Resistant to hot water - Tool-free maintenance Variant Type of system: Single unit Backflow preventer: integrated Pressure pipe connection: vertical, horizontal General characteristics Colour: white Standard: EN 12050-3 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: plug-in ready Cable length: 1,4 m Dimensions Net weight: 7,71 kg Gross weight: 8,71 kg Length: 485 mm Width: 170 mm Height: 285 mm Packaging dimension: length: 530 mm Packaging dimension: width: 227 mm Packaging dimension: height: 390 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Distance pipe bottom outlet to tank bottom: 23 mm Distance pipe bottom inlet to tank bottom: 183 mm Tank volume: 11,55 l Pumping device Pump: SPZ 750-S3 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Protection class: I Protection class (pump): IP 44 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 50 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 9,8 m³/h Max. pumping height: 9 m Speed: 2700 U/min Power P1: 0,75 kW Power P2: 0,46 kW Operating mode: S3 - 15 % Type of pump connection cable: H05VV-F 3G 0,75 mm² Impeller type: Macerator Length of mains cable for pump: 1.4 m Rated current: 3,5 A Control Motor protection switch: yes Level measurement instrument: Pressure switch Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Potential-free contact: yes Warning equipment version: acoustic signal tone
      Title Item no.
      Title Item no.
      Title Item no.
    28093 Backflow preventer for plugging in, for DN 50 inlet 28093 Show
    500101 Hole saw for DN 50/70/100 500101 Show
    850114 Seal for pipe penetration, DN 50 850114 Show
    850116 Seal for pipe penetration, DN 70 850116 Show
    97715 Warning beacon for outdoor cabinet 97715 Show
      Title Item no.
    • Installation situation (einbausituation): free-standing installation
    • Type of wastewater (abwasserart_de): with sewage

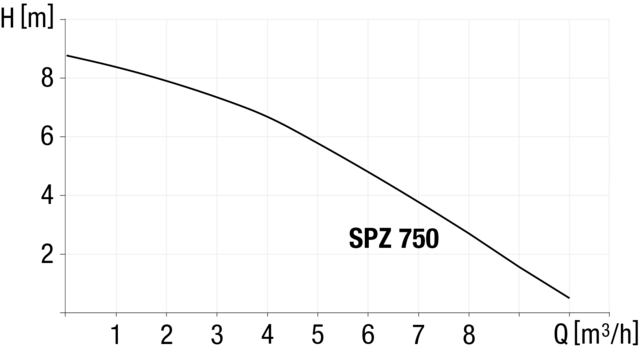

    • Pump (pumpe): SPZ 750-S3
