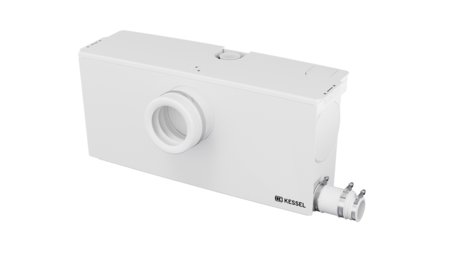

Lifting station Minilift L WC
Duo, Dry, SPZ 750-S3 230V

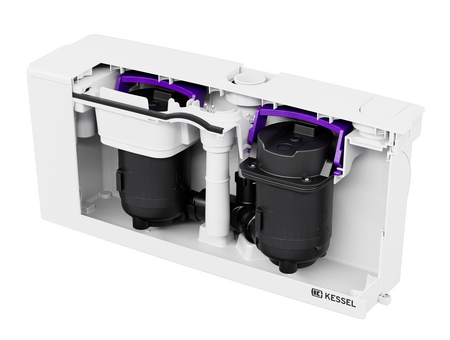

The plug-in ready Minilift L WC Duo small lifting station is suitable for the disposal of domestic blackwater, ideal for connecting a toilet, bidet, shower and washbasin. The system has been specially designed to ensure maximum operating safety. With the two dry-installed pumps, it is the most compact double lifting station on the market. The pumps can be removed without the use of tools. The pumping volume can be continuously adjusted via the pressure sensor and can therefore be optimally adapted for all requirements. The changeable toilet connection allows a toilet to be connected to the front or side of the tank. As a result of this and the compact design, the system is ideal for all locations, for free-standing setup or installation behind a false wall. The deep horizontal inlets in size DN40 or DN50 make it ideally suited for connecting flat shower trays. A vertical inlet is available in size DN40. The simple and tool-free handling ensures fast installation and flexible use. - Two powerful dry-installed pumps with macerator for maximum operating safety and hygiene - Boost function for large amounts of wastewater - Alarm function with optional forwarding (potential-free contact) - Log book function - Discharge-side backflow preventer integrated in the factory - Resistant to hot water - Tool-free maintenance
| Item no. | 28523 |
|---|---|
| GTIN | 4026092113066 |
| Price group | 15 |
Lifting station Minilift L WC Duo, Dry, SPZ 750-S3 230V
The plug-in ready Minilift L WC Duo small lifting station is suitable for the disposal of domestic blackwater, ideal for connecting a toilet, bidet, shower and washbasin. The system has been specially designed to ensure maximum operating safety. With the two dry-installed pumps, it is the most compact double lifting station on the market. The pumps can be removed without the use of tools. The pumping volume can be continuously adjusted via the pressure sensor and can therefore be optimally adapted for all requirements. The changeable toilet connection allows a toilet to be connected to the front or side of the tank. As a result of this and the compact design, the system is ideal for all locations, for free-standing setup or installation behind a false wall. The deep horizontal inlets in size DN40 or DN50 make it ideally suited for connecting flat shower trays. A vertical inlet is available in size DN40. The simple and tool-free handling ensures fast installation and flexible use. - Two powerful dry-installed pumps with macerator for maximum operating safety and hygiene - Boost function for large amounts of wastewater - Alarm function with optional forwarding (potential-free contact) - Log book function - Discharge-side backflow preventer integrated in the factory - Resistant to hot water - Tool-free maintenance Variant Type of system: duo pump Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: white Standard: EN 12050-3 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: plug-in ready Cable length: 1,4 m Dimensions Net weight: 12,95 kg Gross weight: 13,95 kg Length: 605 mm Width: 170 mm Height: 285 mm Packaging dimension: length: 650 mm Packaging dimension: width: 227 mm Packaging dimension: height: 390 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Distance pipe bottom outlet to tank bottom: 285 mm Distance pipe bottom inlet to tank bottom: 138 mm Tank volume: 13,60 l Pumping device Pump: SPZ 750-S3 Number of pumps: 2 Connection type: Schuko (earthed contact) 2-pin Protection class: I Protection class (pump): IP 44 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 50 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 9,8 m³/h Max. pumping height: 9 m Speed: 2700 U/min Power P1: 0,75 kW Power P2: 0,46 kW Operating mode: S3 - 15 % Type of pump connection cable: H05VV-F 3G 1 mm² Impeller type: Macerator Length of mains cable for pump: 1.4 m Rated current: 3,5 A Control Motor protection switch: yes Level measurement instrument: Pressure switch Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Potential-free contact: yes Log book function: yes Warning equipment version: acoustic signal tone Type of fuse required (control unit): B 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| Declaration of Performance | |
| Declaration of Conformity |
- Installation situation (einbausituation):
free-standing installation
- Type of wastewater (abwasserart_de):
with sewage
