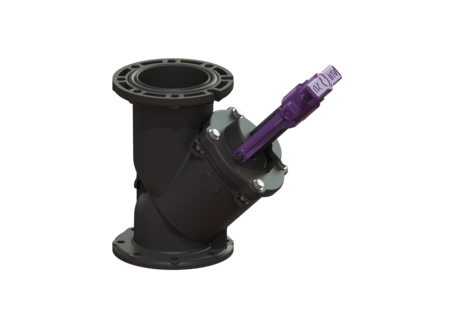

Shut-off valve
DN 80, Polymer, vert
PDF product data sheet
Shut-off valve with vertical pressure pipe connection for the pressure pipe of lifting stations with plastic fitting, including seal and screws. A flange connection or flange adapter must be used for connection to the pressure pipe.
| Item no. | 28715 |
|---|---|
| GTIN | 4026092072820 |
| Price group | 20 |
Shut-off valve DN 80, Polymer, vert
Shut-off valve with vertical pressure pipe connection for the pressure pipe of lifting stations with plastic fitting, including seal and screws. A flange connection or flange adapter must be used for connection to the pressure pipe. General characteristics: Nominal size (DN): 80 Outer diameter (OD): 90 Material: Polymer Colour: black Dimensions: Width: 130 mm Height: 210 mm Pitch diametre: 115 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Catalog Page | |
|---|---|
| CAD Data | |
| BIM Data |
- Pitch diametre (ATTR-246): 115 MMT
- Width (ATTR-A6B): 130 MMT
- Height (ATTR-A6C): 210 MMT
- Material (ATTR-101):
Polymer
- Brand (M-ATTR-001): KESSEL
- Colour (ATTR-102): black
- Nominal size (DN) (ATTR-118):
80
- Outer diameter (OD) (ATTR-147): 90
- Country of origin (ATTR-322): DE
- Net weight (ATTR-A3A): 1.1 KGM
- Gross weight (ATTR-A3B): 1.2 KGM
