Shut-off valve

DN 80, Polymer, vertical with flange

28716
PDF product data sheet

KESSEL Shut-off valve DN 80, Polymer, vertical with flange, Polymer

Item no. 28716
GTIN 4026092072837
Price group 20

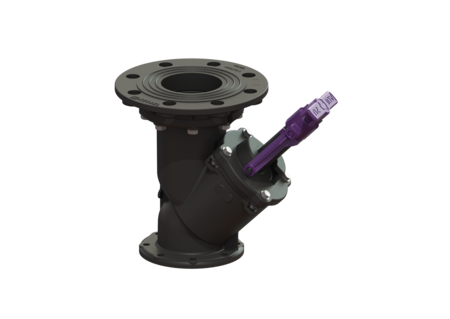

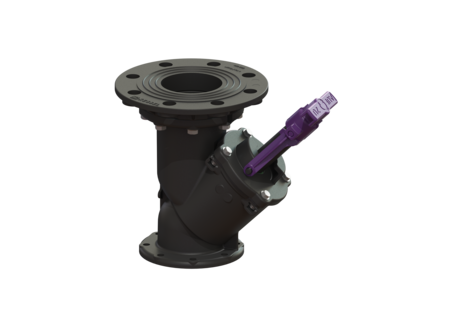

    Shut-off valve DN 80, Polymer, vertical with flange
    Shut-off valve with vertical pressure pipe connection for die pressure pipe of lifting stations with polymer fitting. Including screwed flange adapter DN 80 to DIN 2501. General characteristics Colour: black Material: Polymer Nominal size (DN): 80 Outer diameter (OD): 90 mm Dimensions Net weight: 1,54 kg Gross weight: 1,83 kg Height: 230 mm Packaging dimension: length: 280 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Nominal size (DN) (nennweite): 80
    • Material (material): Polymer
