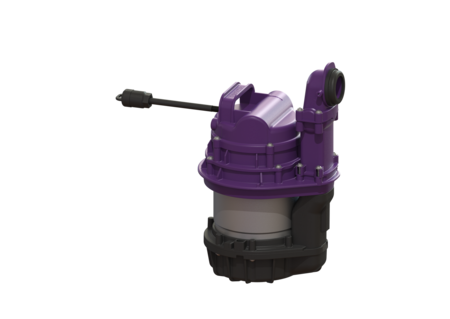

Replacement pump for Aqualift F Compact

PDF product data sheet
Item no. 28739
GTIN 4026092051979
Price group 90

    General characteristics Standard: EN 12050-1 Type of wastewater: with sewage Dimensions Net weight: 9,67 kg Gross weight: 10,37 kg Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Packaging dimension: length: 379 mm Pumping device Pump control: SPZ 1000 Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 5 m Self-diagnosis system (SDS): I Insulation class: F Cos phi - power factor: 0,97 Protection class control unit: IP 68 (3m/48h) DSC: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,7 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    KTP1000 cutting assembly replacement set 28075 Show
    Impeller KTP/SPZ 1000, without intake cover 680035 Show
    • Type of wastewater (abwasserart_de): with sewage
