Comfort control unit

400V, Aqualift Mono, 2.5-4.0 A, AX

28759

KESSEL Comfort control unit, nominal current 2,5 - 4 A, yes, potential-free contact yes, Single unit

  • Self-diagnosis system (SDS)
  • Potential-free contact for faults/warnings
  • Reminder for when maintenance is due
Item no. 28759
GTIN 4026092054598
Price group 20

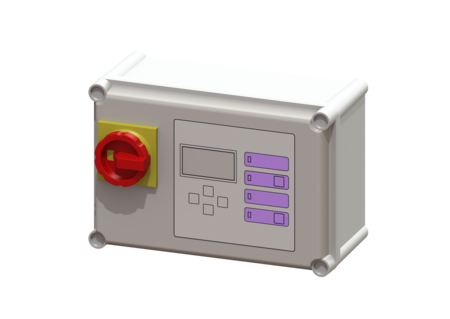

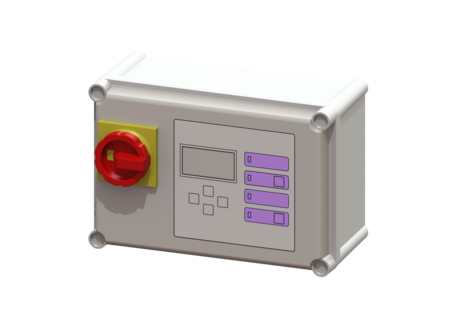

Comfort control unit 400V, Aqualift Mono, 2.5-4.0 A, AX
Komfort control unit for lifting stations or pumping stations. Suitable for 400 V single stations. Optional connection option for float switches, conductivity probes and level probe on the terminal strip. User-friendly menu navigation in multi-line display. Menu navigation in six languages. Simple selection of the system to be connected with preset, system-specific operating parameters. Display of the current measured values. Simple adjustment of the function-related parameters, with integrated operating hour counter. With self-diagnosis system (SDS) for monitoring pump, sensors and battery back-up. Improper installation or operating faults trigger an optical and acoustic alarm signal. Forwarding of a collective fault and alarm signals via optional potential-free contact or integrated serial interface for GSM modem. Variant Series: ab 03/2010 Type of system: Single unit General characteristics Colour: grey System type: Mono Dimensions Net weight: 2,47 kg Gross weight: 3,19 kg Packaging dimension: length: 330 mm Packaging dimension: width: 250 mm Packaging dimension: height: 190 mm Pumping device Connection type: Direct connection Rated current: 2,5 - 4 A Control Control unit: Comfort Motor protection switch: yes Protection class control unit: IP 54 Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: no Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Control unit (schaltgeraet): Comfort
  • ATEX (atex): yes
  • TÜV test mark (pruefzeichen): ID 1111241940
  • (niveauerfassung_art):
