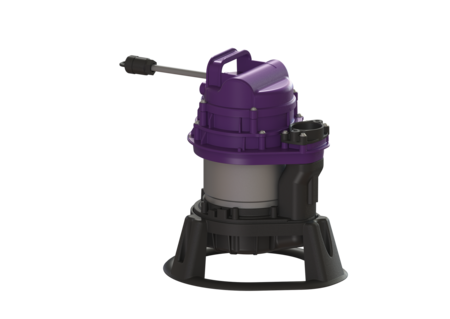

Submersible pump Aquadive STZ1000

without float switch, 10 m

28779
28779
PDF product data sheet

KESSEL Submersible pump Aquadive STZ1000, wastewater with sewage, E-motor for alternating current, pump control by without float switch, operating mode S3 - 30 %, Backflow preventer, pumping height 10 m

    • Multi-vane vortex impeller for maximum reliability
    • Longitudinally watertight potted connection cable
    • Integrated shallow extraction
    Item no. 28779
    GTIN 4026092055885
    Price group 20

      Submersible pump Aquadive STZ1000 without float switch, 10 m
      Replacement pump Aquadive without ATEX, with macerator, without float control. Variant Pump control: without float switch General characteristics Material: Polymer, Stainless steel Standard: EN 12050-1 Type of wastewater: with sewage Cable length: 10 m Dimensions Net weight: 10,52 kg Gross weight: 11 kg Length: 258 mm Width: 258 mm Height: 294 mm Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Tank/drain body Pressure pipe connection: R 1 ¼ " Pumping device Pump: STZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Operating voltage: 230 V Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 30 % Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Type of fuse required (pump): C 16 A Length of mains cable for pump: 10 m Rated current: 4,9 A Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Type of wastewater (abwasserart_de): with sewage
      • Pump (pumpe): STZ 1000
      • Operating voltage (betriebsspannung): 230  V
      • (niveauerfassung_art):
