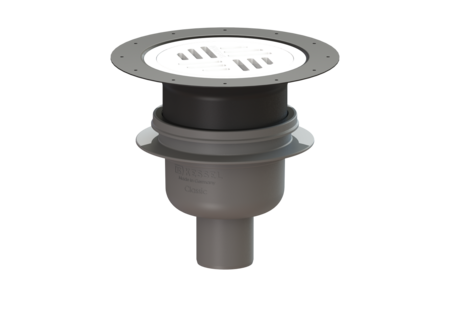

Variofix Classic bathroom drain

DN 50, vertical, Slotted grating, K 3

The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Including upper section for combined waterproofing for alternative WP layer.

  • Odour trap height: 50 mm
  • Lip seal fixed on the drain body
  • Side adjustable cover
Item no. 40250.30
GTIN 4026092028902
Price group 10

    Variofix Classic bathroom drain DN 50, vertical, Slotted grating, K 3
    The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Variant Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Nominal size (DN): 50 Dimensions Vertical adjustment: 25 - 65 mm Net weight: 0,6 kg Gross weight: 0,71 kg Diameter: 120 mm Vertical adjustment: vertically adjustable upper section Width: 180 mm Height: 135 mm Length: 180 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Packaging dimension: length: 200 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS System: vertical Coverage features Type of cover: Round slotted cover Cover material: Polymer Colour of cover: grey Frame material: ABS Load class: K 3 (EN 1253-1) Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Adapter DN 50/40 27118 Show
    Adapter DN 50/70 27126 Show
    Extension section System 100, H: 161 mm 27146 Show
    Sludge bucket d: 110 mm 27168 Show
    Extension section System 100, with pressure sealing flange 27198 Show
    Extension section System 100, with glued flange 27199 Show
    Odour trap Multistop, System 100 43500 Show
    Hair filter Polymer, for System 100 bathroom drains 43700 Show
    KESSEL System 100 glue flange 47900 Show
      Title Item no.
    Odour trap Sealing water height 50 mm 47200 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Polymer
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
    • System (stutzen_ausfuehrung): vertical
    • Type of cover (abdeckungsart): Round slotted cover
    • (abdichtung_am_Grundkoerper):
    • (form_Aufsatzstueck):
