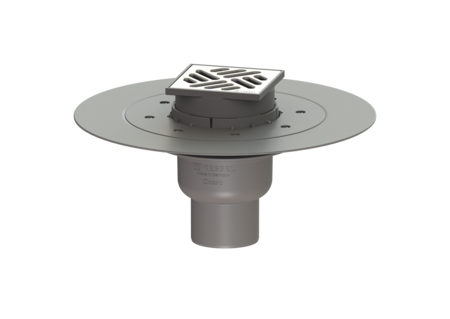

Classic bathroom drain glued fl.
DN 70, vertical, Slotted grating, K 3
KESSEL Classic bathroom drain glued fl., cover length 100 mm, Cover Stainless steel 14301, socket vertical, nominal size (DN) 70, drainage by Point drain, type of cover Slotted cover, Sealing water height 50 mm
- Odour trap height: 50 mm
- Lip seal fixed on the drain body
- System 100 - modular design
Item no. | 40270.90 |
---|---|
GTIN | 4026092029558 |
Price group | 10 |
Classic bathroom drain glued fl. DN 70, vertical, Slotted grating, K 3
The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Including glued flange and mating flange for clamping PVC sheeting (vapour barriers) or for alternative waterproofing layers (additional honeycomb fabric required). Variant Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 75 mm ATEX: no Odour trap: included Dimensions Vertical adjustment: 20 - 60 mm Net weight: 0,55 kg Gross weight: 0,92 kg Cutout dimension, width: 350 mm Cutout dimension, length: 350 mm Type of height adjustability: vertically adjustable upper section Length: 332 mm Width: 332 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 100 mm Length of cover: 100 mm Frame material: ABS Locking: placed Load class: K 3 (EN 1253-1) Rim width: 107 mm Rim length: 107 mm Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Extension section System 100, H: 161 mm | 27146 | Show | |
Sludge bucket d: 110 mm | 27168 | Show | |
Extension section System 100, with pressure sealing flange | 27198 | Show | |
Extension section System 100, with glued flange | 27199 | Show | |
Odour trap Multistop, System 100 | 43500 | Show | |
Hair filter Polymer, for System 100 bathroom drains | 43700 | Show | |
Intermediate section with system 100 glued flange | 47900 | Show |
CAD Data |
---|
- Nominal size (DN) (nennweite): 70
- Material of drain body (material_grundkoerper): ABS
- Cover material (abdeckung_material): Stainless steel 14301
- Frame material (rahmen_material): ABS
- Upper section material (material_aufsatzstueck): ABS
- Socket version (stutzen_ausfuehrung): vertical
- Type of cover (abdeckungsart): Slotted cover
- (abdichtung_am_Grundkoerper):
- (form_Aufsatzstueck):
