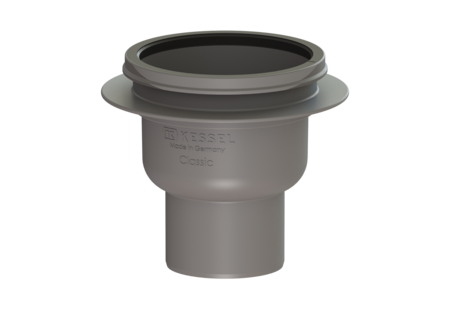

Variofix Classic bathroom drain

Sys 100, DN 70, Vertical outlet

The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Including upper section for combined waterproofing for alternative WP layer.

  • Odour trap height: 50 mm
  • Lip seal fixed on the drain body
  • Side adjustable cover
Item no. 40271
GTIN 4026092029565
Price group 10

    Variofix Classic bathroom drain Sys 100, DN 70, Vertical outlet
    The drain body for Classic floor/bathroom drains is made of polymer and is equipped with a secure, reliably installed seal. Variant System: 100 Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Standard: EN 1253-2 Nominal size (DN): 70 Outer diameter (OD): 75 mm Dimensions Net weight: 0,15 kg Gross weight: 0,15 kg Width: 156 mm Height: 135 mm Length: 156 mm Packaging dimension: width: 165 mm Packaging dimension: height: 136 mm Packaging dimension: length: 165 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS System: vertical Coverage features Odour trap: no
      Title Item no.
    Upper section System 100, Slotted cover, 304 SST, K 3 27165 Show
    Upper section System 100, Slotted cover, anti-slip 27176 Show
    Upper section Sys100, Kessel des cover, 304SST, L15 27201 Show
    Upper section Sys 100, Oval des cover, 304 SST, L 15 27202 Show
    Upper section System 100, tileable, Polymer, K 3 27210 Show
    Upper section System 100, tileable, 304 SST, K 3 27211 Show
    Variofix upper section System 100, Slotted cover, 304 SST, K 3 47901 Show
    Variofix upper section System 100, Slotted cover, 304 SST, L 15 47902 Show
    Variofix upper section Sys100, Kessel des cover, 304 SST, L 15 47904 Show
    Variofix upper section Sys100, Oval ded cover, 304 SST, L 15 47905 Show
    Variofix upper section System 100, tileable, 304 SST, K 3 47906 Show
      Title Item no.
      Title Item no.
    Extension section System 100, H: 161 mm 27146 Show
    Sludge bucket d: 110 mm 27168 Show
    Extension section System 100, with pressure sealing flange 27198 Show
    Extension section System 100, with glued flange 27199 Show
    Odour trap Multistop, System 100 43500 Show
    Hair filter Polymer, for System 100 bathroom drains 43700 Show
    KESSEL System 100 glue flange 47900 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 70
    • Material of drain body (material_grundkoerper): ABS
    • System (stutzen_ausfuehrung): vertical
    • (abdeckungsart):
    • (abdichtung_am_Grundkoerper):
    • (form_Aufsatzstueck):
