The Superflat bathroom drain

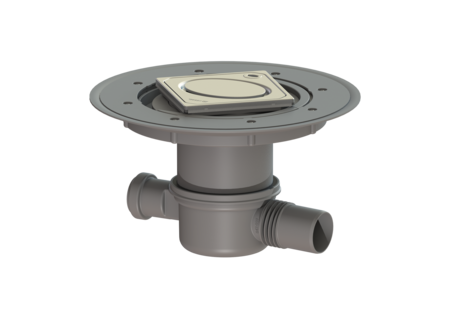

Upper section for combined waterproofing, DN 50, Design grating Oval
The Superflat bathroom drain is suitable for indoor floor drainage. The drain made of PP is equipped with a secure, reliably installed seal as well as a removable odour trap.
| Item no. | 42701.54 |
|---|---|
| GTIN | 4026092029626 |
| Price group | 10 |
The Superflat bathroom drain Upper section for combined waterproofing, DN 50, Design grating Oval
The Superflat bathroom drain is suitable for indoor floor drainage. The drain made of PP is equipped with a secure, reliably installed seal as well as a removable odour trap. Version: Odour trap: included Type of waterproofing layer: Waterproofing layer Sealing water height: 30 mm General characteristics: Nominal size (DN): 50 Outer diameter (OD): 50 Dimensions: Length: 312 mm Width: 312 mm Cutout dimension, length: 260 mm Cutout dimension, width: 180 mm Tank: Number of inlets: 1 ST Inlet nominal size (DN): 40 Number of outlets: 1 ST Drain body: Material of drain body: PP Vertical adjustment: vertically adjustable upper section Vertical adjustment: 10 - 23 mm Coverage features: Type of cover: Design cover Grating design: Oval Cover material: 304 stainless steel Colour of cover: silver Load class: K 3 (EN 1253-1) Length: 120 mm Width: 120 mm Surface: ground Locking: Lock & Lift Grating: Rim length: 132 mm Rim width: 132 mm Rim material: 304 stainless steel Shape of upper section: square Upper section material: PP Discharge rate (l/s) with 20 mm backwater: 0.8 l/s
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Design cover Oval, Lock & Lift | 680225 | Show |
 | Design cover KESSEL, Lock & Lift | 680226 | Show |
 | Design cover Cross, Lock & Lift | 680235 | Show |
 | Design cover Parade, Lock & Lift | 680236 | Show |
 | Design cover Festival, Lock & Lift | 680237 | Show |
 | Design cover Spot, Lock & Lift | 680238 | Show |
 | Design cover Slot, Lock & Lift | 680239 | Show |
 | Design cover Sticks, Lock & Lift | 680240 | Show |
 | Release key for Lock & Lift | 680702 | Show |
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data |
- Complete article (ATTR-254): yes
- Electrical connection available (ATTR-256): no
- Connection to the BCS, BAC (ATTR-257): no
- Shape of upper section (ATTR-259): square
- Type of drainage (ATTR-260): Point drain
- Grating/channel shape (ATTR-261): round
- Type of drainage (ATTR-263): open channel
- - (ATTR-340):
- Country of origin (ATTR-322): DE
- Rim material (ATTR-111):
304 stainless steel
- Rim length (ATTR-111B): 132 MMT
- Rim width (ATTR-111C): 132 MMT
- Vertical adjustment (ATTR-226_VB): 10 MMT
- Type of waterproofing layer (ATTR-170): Waterproofing layer
- Odour trap (ATTR-115): included
- Length (ATTR-A6A): 312 MMT
- Width (ATTR-A6B): 312 MMT
- Cutout dimension, length (ATTR-160): 260 MMT
- Cutout dimension, width (ATTR-161): 180 MMT
- Volume (ATTR-320): 0.0 MTQ
- Packaging dimension: length (ATTR-325): 390 MMT
- Packaging dimension: width (ATTR-326): 190 MMT
- Packaging dimension: height (ATTR-327): 310 MMT
- Dimensions (ATTR-323): 390X190X310MM
- Number of packages (ATTR-321): 0
- Grating design (ATTR-112): Oval
- Type of cover (ATTR-A21): Design cover
- Colour of cover (ATTR-A2A): silver
- Load class (ATTR-A2B): K 3 (EN 1253-1)
- Locking (ATTR-A2D): Lock & Lift
- Cover material (ATTR-A2E):
304 stainless steel
- Surface (ATTR-A2F): ground
- Length (ATTR-A2M): 120 MMT
- Width (ATTR-A2N): 120 MMT
- Number of inlets (ATTR-B1B): 1 PCE
- Inlet nominal size (DN) (ATTR-B1CA): 40 MMT
- Number of outlets (ATTR-B15B): 1 PCE
- Material of drain body (ATTR-232):
PP
- Net weight (ATTR-A3A): 1.8 KGM
- Gross weight (ATTR-A3B): 2.1 KGM
- Nominal size (DN) (ATTR-118):
50
- Outer diameter (OD) (ATTR-147): 50
- Sealing water height (ATTR-128): 30 MMT
- Discharge rate (l/s) with 20 mm backwater (ATTR-157): 0.8 LTS
- Vertical adjustment (ATTR-177): vertically adjustable upper section
- Upper section material (ATTR-231):
PP
- NDOP (ATTR-304): 009-061
- Product class, temperature rating (ATTR-223): A
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Drains
- Product type (M-ATTR-003): Bathroom drain
- Product family (M-ATTR-004): The Superflat
- Product name (M-ATTR-005): The Superflat
- Temperature class (ATTR-253): A
