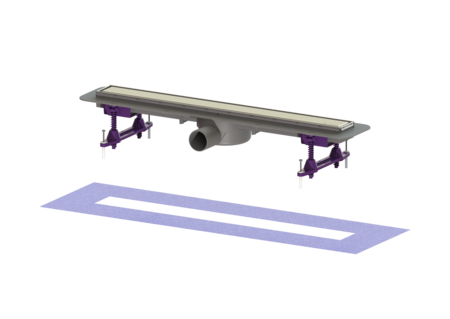

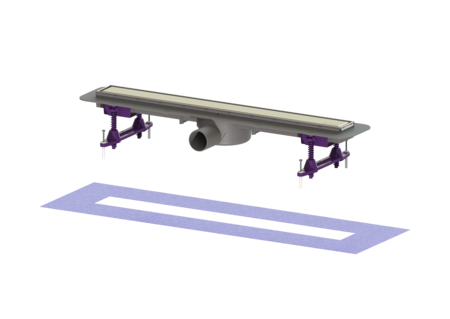

Shower channel Linearis Compact

L: 650 mm, DN50, enclWPM, 304 STcov, K3

45600.62

KESSEL Shower channel Linearis Compact, length 650 mm, nominal size (DN) 50, drainage by Linear drain, type of cover Stainless steel cover, waterproofing layer upper section by Enclosed sealing collar to be glued (bd) according to DIN 18534

  • Individual design with reversible stainless steel insert
  • Low installation depth
  • Highest fire protection standards
Item no. 45600.62
GTIN 4026092048184
Price group 10

    Shower channel Linearis Compact L: 650 mm, DN50, enclWPM, 304 STcov, K3
    The Linearis Compact shower channel with welded on drain body made of ABS is suitable for indoor linear drainage. If inserted upside down, the stainless steel insert can be tiled individually. Including prepared seepage water openings and odour trap. Variant System: 125 Seepage opening: prepared Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W2-I Sealing water height: 22 mm Discharge rate (l/s) with 10 mm threshold: 0,6 Discharge rate (l/s) with 20 mm threshold: 0,7 Discharge rate (l/s) without threshold: 0,5 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Dimensions Net weight: 1,85 kg Gross weight: 2,22 kg Outer dimension, length: 715 mm Installation depth: 80 - 140 mm Width: 191 mm Height: 80 mm Packaging dimension: length: 1264 mm Packaging dimension: width: 254 mm Packaging dimension: height: 136 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Coverage features Type of cover: Stainless steel cover Cover material: Stainless steel 14301 Colour of cover: silver Frame material: Stainless steel 14301 Load class: K 3 (EN 1253-1) Grating design: optionally tileable Rim width: 66 mm Rim length: 650 mm Max. flooring height: 15 mm Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    48603 Odour trap Linearis, sealing water height 22 mm 48603 Show
    680258 Stainless steel insert Linearis Comp., L: 650 mm, til 08/2015 680258 Show
    680482 Stainless steel insert Linearis Comp., L: 650 mm, fr. 09/2015 680482 Show
    680669 Stand set 2 stands incl. rubber insert 680669 Show
    680728 Waterproofing membrane for Linearis Compact 300 - 1150 mm 680728 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Rim length (rahmen_laenge): 650  mm
