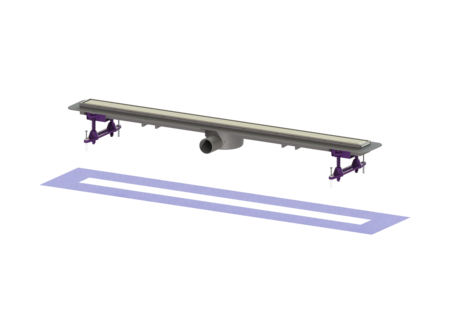

Shower channel Linearis Compact
L: 1050 mm, DN50, enclWPM, 304SSTcov, K3
KESSEL Shower channel Linearis Compact, length 1050 mm, nominal size (DN) 50, drainage by Linear drain, type of cover Stainless steel cover, waterproofing layer upper section by Enclosed sealing collar to be glued (bd) according to DIN 18534
- Individual design with reversible stainless steel insert
- Low installation depth
- Highest fire protection standards
Item no. | 45600.66 |
---|---|
GTIN | 4026092046128 |
Price group | 10 |

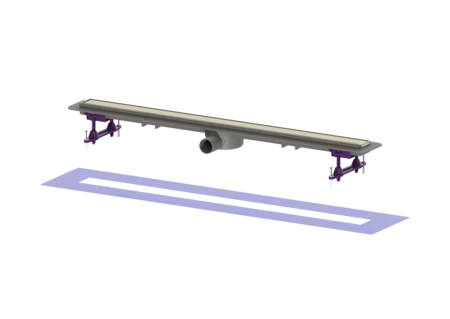

Shower channel Linearis Compact L: 1050 mm, DN50, enclWPM, 304SSTcov, K3
The Linearis Compact shower channel with welded on drain body made of ABS is suitable for indoor linear drainage. If inserted upside down, the stainless steel insert can be tiled individually. Including prepared seepage water openings and odour trap. Variant System: 125 Seepage opening: prepared Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W2-I Sealing water height: 22 mm Discharge rate (l/s) with 10 mm threshold: 0,6 Discharge rate (l/s) with 20 mm threshold: 0,7 Discharge rate (l/s) without threshold: 0,5 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Dimensions Net weight: 2,85 kg Gross weight: 3,23 kg Outer dimension, length: 1115 mm Installation depth: 80 - 140 mm Width: 191 mm Height: 80 mm Packaging dimension: length: 1114,6 mm Packaging dimension: width: 191 mm Packaging dimension: height: 79,5 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Coverage features Type of cover: Stainless steel cover Cover material: Stainless steel 14301 Colour of cover: silver Surface: Brushed SST Frame material: Stainless steel 14301 Load class: K 3 (EN 1253-1) Grating design: optionally tileable Rim width: 66 mm Rim length: 1050 mm Max. flooring height: 15 mm Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Odour trap Linearis, sealing water height 22 mm | 48603 | Show | |
Stainless steel insert Linearis Comp., L: 1050mm, up to 12/2013 | 680254 | Show | |
Stainless steel insert Linearis Comp., L: 1050 mm, fr. 01/2014 | 680428 | Show | |
Stand set 2 stands incl. rubber insert | 680669 | Show | |
Waterproofing membrane for Linearis Compact 300 - 1150 mm | 680728 | Show |
Manuals | |
---|---|
CAD Data |
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper): ABS
- Cover material (abdeckung_material): Stainless steel 14301
- Frame material (rahmen_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck): ABS
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Rim length (rahmen_laenge): 1,050 mm
