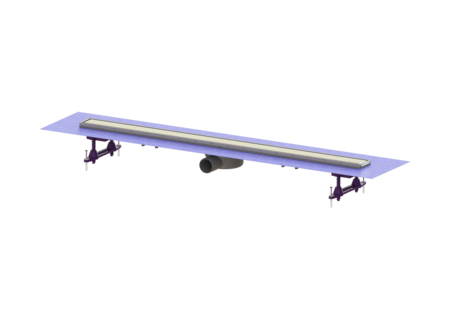

Shower channel Linearis Compact

L: 1050 mm, DN50, WaD, 304 SST cov, K3

KESSEL Shower channel Linearis Compact, length 1050 mm, nominal size (DN) 50, drainage by Linear drain, type of cover Stainless steel cover, waterproofing layer upper section by Factory-fitted sealing collar (WaD) according to DIN 18534

  • Individual design with reversible stainless steel insert
  • Low installation depth
  • Highest fire protection standards
Item no. 45600.66M
GTIN 4026092078945
Price group 10

    Shower channel Linearis Compact L: 1050 mm, DN50, WaD, 304 SST cov, K3
    The Linearis Compact shower channel with welded on drain body made of ABS is suitable for indoor linear drainage. If inserted upside down, the stainless steel insert can be tiled individually. Including prepared seepage water openings and odour trap. Variant System: 125 Seepage opening: prepared Waterproofing layer on the upper section: Factory-fitted sealing collar (WaD) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 22 mm Discharge rate (l/s) with 10 mm backwater: 0,6 Discharge rate (l/s) with 20 mm backwater: 0,7 Discharge rate (l/s) without backwater: 0,5 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Dimensions Net weight: 2,8 kg Gross weight: 3,3 kg Outer dimension, length: 1115 mm Installation depth: 80 - 140 mm Width: 191 mm Height: 80 mm Packaging dimension: length: 1280 mm Packaging dimension: width: 260 mm Packaging dimension: height: 130 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Coverage features Type of cover: Stainless steel cover Cover material: Stainless steel 14301 Colour of cover: silver Surface: Brushed SST Frame material: Stainless steel 14301 Locking: placed Load class: K 3 (EN 1253-1) Grating design: optionally tileable Rim width: 66 mm Rim length: 1050 mm Max. flooring height: 15 mm Shape of upper section: square Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Odour trap Multistop, for Linearis Compact & Scada 48400 Show
    Sound insulation element for Linearis Compact installation supp. 48630 Show
    Installation aid for Linearis Compact 48639 Show
    Hair filter Polymer, for shower channels 48800 Show
      Title Item no.
    Odour trap Linearis, sealing water height 22 mm 48603 Show
    Stainless steel insert Linearis Super60, L: 750 mm, K 3 680248 Show
    Stainless steel insert Linearis Comp., L: 1050 mm, fr. 01/2014 680428 Show
    Stand set 2 stands incl. rubber insert 680669 Show
    Waterproofing membrane for Linearis Compact 300 - 1150 mm 680728 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • System (system): 125
    • Odour trap (geruchsverschluss): included
    • Rim length (rahmen_laenge): 1,050  mm
