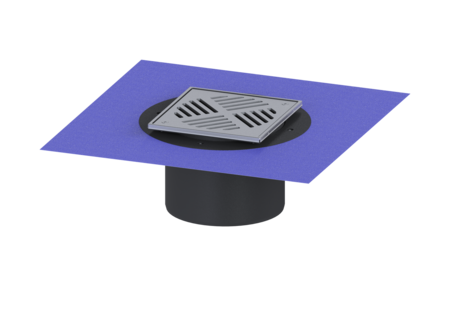

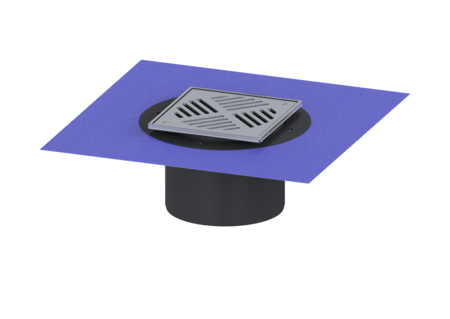

Variofix upper section

System 200, Slotted cover, 304 SST, L 15

PDF product data sheet

Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage.

  • Different covers selectable
  • Including waterproofing membrane
Item no. 48978
GTIN 4026092007990
Discount group 3

Variofix upper section System 200, Slotted cover, 304 SST, L 15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Version: System: 200 Type of waterproofing layer: Waterproofing layer Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Dimensions: Height: 150 mm Diameter: 320 mm Vertical adjustment: vertically adjustable upper section Vertical adjustment: 12 - 25 mm Upper section: adjustable in three dimensions Coverage features: Type of cover: Slotted cover Cover material: 304 stainless steel Colour of cover: silver Load class: L 15 (EN 1253-1) Locking: screwed Grating: Rim length: 200 mm Rim width: 200 mm Upper section material: ABS
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Waterproofing layer on the upper section (ATTR-251): Enclosed sealing collar to be glued (bd) according to DIN 18534
  • Advantages text (M-ATTR-007): Flexible
  • Country of origin (ATTR-322): DE
  • Vertical adjustment (ATTR-226_VB): 12  MMT
  • Rim length (ATTR-111B): 200  MMT
  • Rim width (ATTR-111C): 200  MMT
  • Upper section (ATTR-337): adjustable in three dimensions
  • Type of cover (ATTR-A21): Slotted cover
  • Colour of cover (ATTR-A2A): silver
  • Load class (ATTR-A2B): L 15 (EN 1253-1)
  • Locking (ATTR-A2D): screwed
  • Cover material (ATTR-A2E): 304 stainless steel
  • Diameter (ATTR-A107): 320  MMT
  • - (ATTR-371):
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • System (ATTR-244): 200
  • Height (ATTR-A6C): 150  MMT
  • Diameter (ATTR-107): 320  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 360  MMT
  • Packaging dimension: width (ATTR-326): 360  MMT
  • Packaging dimension: height (ATTR-327): 250  MMT
  • Dimensions (ATTR-323): 360X360X250MM
  • Number of packages (ATTR-321): 0
  • Net weight (ATTR-A3A): 2.6  KGM
  • Gross weight (ATTR-A3B): 2.6  KGM
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Upper section material (ATTR-231): ABS
  • Water exposure class in accordance to DIN 18534-1 (up to and including) (ATTR-242): W3-I
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Upper section
  • Product family (M-ATTR-004): Variofix
  • Product name (M-ATTR-005): Variofix
