Extension section

System 125, horiz Inlet DN 50, Gl fl.

PDF product data sheet

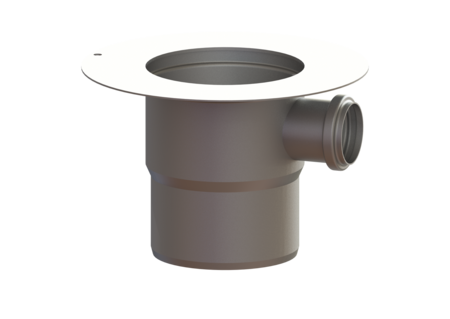

System 125 extension section with glued flange and side inlet DN 50, with a push-fit socket and seal, for extension between the drain body and upper section.

Item no. 54903
GTIN 4026092072295
Discount group 3

Extension section System 125, horiz Inlet DN 50, Gl fl.
System 125 extension section with glued flange and side inlet DN 50, with a push-fit socket and seal, for extension between the drain body and upper section. Version: Seal: Lip seal System: 125 General characteristics: Material: Stainless steel Dimensions: Diameter: 240 mm Tank: Inlet nominal size (DN): 50
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Seal (ATTR-114): Lip seal
  • System (ATTR-244): 125
  • Inlet nominal size (DN) (ATTR-B1CA): 50
  • Material (ATTR-101): Stainless steel
  • Brand (M-ATTR-001): KESSEL
  • Country of origin (ATTR-322): SI
  • Net weight (ATTR-A3A): 2.0  KGM
  • Gross weight (ATTR-A3B): 2.1  KGM
  • Diameter (ATTR-107): 240  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 247  MMT
  • Packaging dimension: width (ATTR-326): 247  MMT
  • Packaging dimension: height (ATTR-327): 180  MMT
  • Dimensions (ATTR-323): 247X247X180MM
  • Number of packages (ATTR-321): 0
