Ferrofix cleanout

System 125, odour-tight

KESSEL Ferrofix cleanout, load class L 15, waterproofing layer upper section by, length 146 mm, length 150 mm, width 150 mm, type of cover closed cover plate, locking screwed

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
Item no. 54912
GTIN 4026092072400
Price group 70

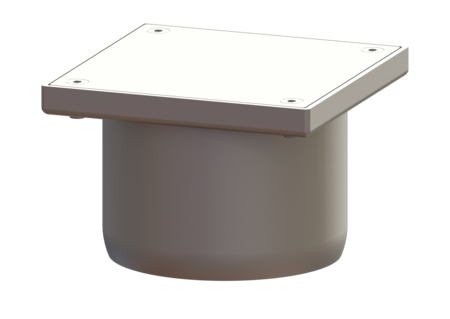

    Ferrofix cleanout System 125, odour-tight
    The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed cover plate. Variant System: 125 Dimensions Net weight: 2,15 kg Gross weight: 2,25 kg Length: 146 mm Width: 146 mm Height: 100 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: closed cover plate Cover material: Stainless steel 14301 Height of cover: 17 mm Locking: screwed Load class: L 15 (EN 1253-1) Tightness: odour-tight Rim width: 150 mm Rim length: 150 mm Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Cover opaque, V2A, 150x150 mm, L 15 680477 Show
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Type of cover (abdeckungsart): closed cover plate
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Locking (verriegelung): screwed
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck):
