Ferrofix upper section

Glued flange H:6mm, 300x300mm,grate,M125

55133
55133

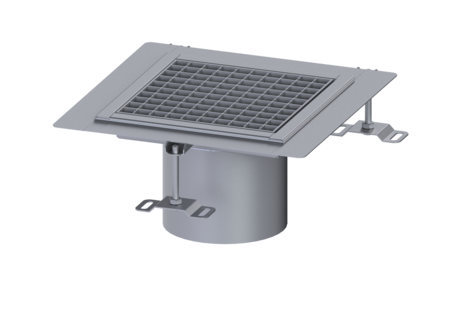

KESSEL Ferrofix upper section Glued flange H:6mm, 300x300mm,grate,M125, surface, length 300 mm, width 300 mm, type of cover Slotted cover, locking unlocked

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 55133
GTIN 4026092107584
Price group 70

    Ferrofix upper section Glued flange H:6mm, 300x300mm,grate,M125
    Used in combination with a drain body of the KESSEL modular system 185, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (6 mm deep and 50 mm folded outwards). Variant System: 185 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics Standard: EN 1253-1 Dimensions Length: 300 mm Width: 300 mm Height: 200 mm Coverage features Type of cover: Slotted cover Locking: unlocked Load class: L 15 / M 125 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: square Upper section material: Stainless steel 14301 Cover Grating material: 304 stainless steel
      Title Item no.
      Title Item no.
      Title Item no.
    55162 Dirt strainer St. st., for upper sections System 185 55162 Show
    55163 Sludge bucket Stainless steel, System 185, vertical 55163 Show
      Title Item no.
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Type of cover (abdeckungsart): Slotted cover
    • (abdeckung_material):
    • Length (laenge): 300  mm
    • Width (breite): 300  mm
    • Load class (belastungsklasse): L 15 / M 125 (EN 1253-1)
