Ferrofix upper section

Gl. flange H:15mm, 206x206mm,insert,M125

55136
55136

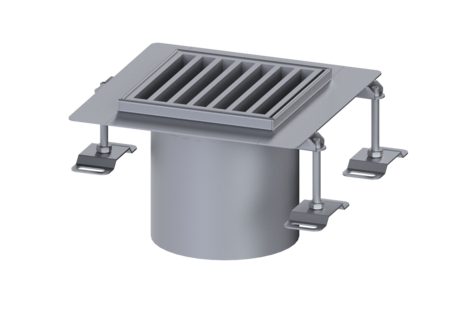

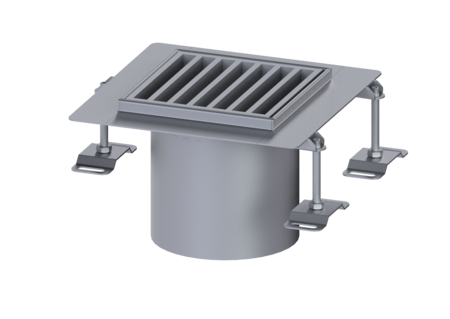

KESSEL Ferrofix upper section Gl. flange H:15mm, 206x206mm,insert,M125, surface, type of cover Ladder grating, locking unlocked, design cover, Cover Stainless steel 14301

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 55136
GTIN 4026092107614
Price group 70

    Ferrofix upper section Gl. flange H:15mm, 206x206mm,insert,M125
    Used in combination with a drain body of the KESSEL modular system 185, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards). Variant System: 185 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics Standard: EN 1253-1 Dimensions Length: 206 mm Width: 206 mm Height: 200 mm Coverage features Type of cover: Ladder grating Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: unlocked Load class: L 15 / M 125 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: square Upper section material: Stainless steel 14301 Cover Grating material: 304 stainless steel
      Title Item no.
      Title Item no.
      Title Item no.
    55162 Dirt strainer St. st., for upper sections System 185 55162 Show
    55163 Sludge bucket Stainless steel, System 185, vertical 55163 Show
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Type of cover (abdeckungsart): Ladder grating
    • Length (laenge): 206  mm
    • Width (breite): 206  mm
    • Load class (belastungsklasse): L 15 / M 125 (EN 1253-1)
