Ferrofix upper section

Gl. flange, rd, H:15mm, 250mm, grate,L15

55144
55144

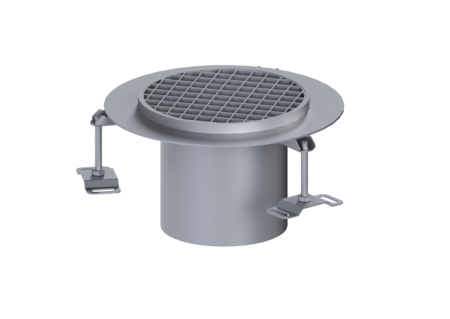

KESSEL Ferrofix upper section Gl. flange, rd, H:15mm, 250mm, grate,L15, surface, type of cover Slotted cover, locking unlocked, design cover, Cover Stainless steel 14301

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 55144
GTIN 4026092107690
Price group 70

    Ferrofix upper section Gl. flange, rd, H:15mm, 250mm, grate,L15
    Used in combination with a drain body of the KESSEL modular system 185, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards). Variant System: 185 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics Standard: EN 1253-1 ATEX: no Dimensions Width: 250 mm Height: 250 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: unlocked Load class: L 15 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: round Upper section material: Stainless steel 14301 Cover Grating material: 304 stainless steel
      Title Item no.
      Title Item no.
      Title Item no.
    55162 Dirt strainer St. st., for upper sections System 185 55162 Show
    55163 Sludge bucket Stainless steel, System 185, vertical 55163 Show
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Type of cover (abdeckungsart): Slotted cover
    • Length (laenge):  mm
    • Width (breite): 250  mm
    • Load class (belastungsklasse): L 15 (EN 1253-1)
