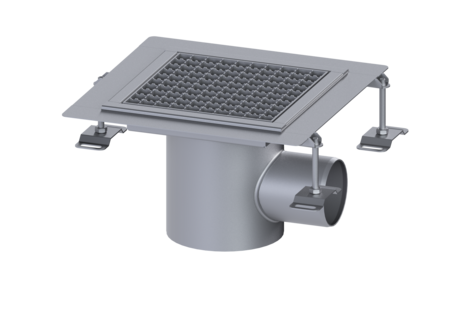

Drain body Ferrofix, one-p, GF6

DN100, hori., 300x300, grated cover

55156
55156

KESSEL Drain body Ferrofix, one-p, GF6 DN100, hori., 300x300, grated cover, System 185, surface, length 300 mm, width 300 mm, type of cover Slotted cover, locking

  • Made of particularly hygienic and mechanically highly resistant stainless steel
Item no. 55156
GTIN 4026092107812
Price group 70

    Drain body Ferrofix, one-p, GF6 DN100, hori., 300x300, grated cover
    The one-piece Ferrofix System 185 stainless steel floor drain is used for point drainage and is equipped with a removable odour trap, sludge bucket and grated cover. The floor drain is suitable for thin-layered floorings (e.g. epoxy resin) and has an all-round adhesive rim (6 mm deep and 50 mm folded outwards). The outlet socket is suitable for connection to SML cast iron pipes. With a drainage capacity ≥ 2.4 l/s with 20 mm build-up. Variant System: 185 Contents of sludge trap: yes Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Sealing water height: 70 mm Discharge rate (l/s) with 20 mm threshold: 2,5 Outlet: horizontal General characteristics Material: Stainless steel 14301 Outlet: horizontal Glued flange height: 6 mm Odour trap: included Dimensions Length: 300 mm Width: 300 mm Height: 240 mm Tank/drain body Number of outlets: 1 Outlet nominal size (DN): 100 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Load class: M 125 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: square Contents of sludge trap: yes Cover Grating material: 304 stainless steel
      Title Item no.
      Title Item no.
      Title Item no.
    55164 Odour trap Seal. water height 70mm,horiz,304 st.st. 55164 Show
      Title Item no.
    • Material (material): Stainless steel 14301
    • Cover material (abdeckung_material): Stainless steel 14301
    • Length (laenge): 300  mm
    • Width (breite): 300  mm
    • Load class (belastungsklasse): M 125 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Surface (oberflaeche):
