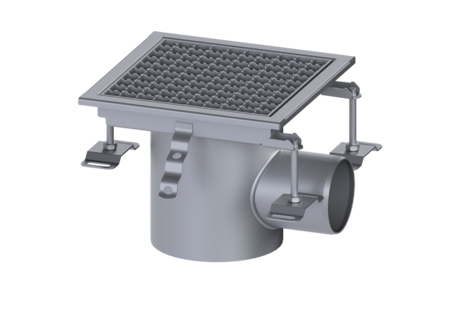

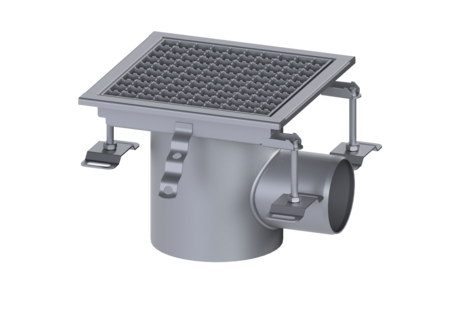

Drain body Ferrofix, one-piece
DN 100, hori., 300x300,grated cover
KESSEL Drain body Ferrofix, one-piece DN 100, hori., 300x300,grated cover, System 185, surface, type of cover Slotted cover, locking, design cover, Cover Stainless steel 14301
- Made of particularly hygienic and mechanically highly resistant stainless steel
| Item no. | 55158 |
|---|---|
| GTIN | 4026092107836 |
| Price group | 70 |
Drain body Ferrofix, one-piece DN 100, hori., 300x300,grated cover
The one-piece Ferrofix System 185 stainless steel floor drain is used for point drainage and is equipped with a removable odour trap, sludge bucket and grated cover. The floor drain is suitable for thin-layered floorings (e.g. epoxy resin) and has an all-round adhesive rim. The outlet socket is suitable for connection to SML cast iron pipes. With a drainage capacity ≥ 2.4 l/s with 20 mm build-up. Variant System: 185 Contents of sludge trap: yes Sealing water height: 70 mm Discharge rate (l/s) with 20 mm threshold: 2,5 Outlet: horizontal General characteristics Material: Stainless steel 14301 Outlet: horizontal Odour trap: included Dimensions Net weight: 5 kg Gross weight: 5 kg Length: 300 mm Width: 300 mm Height: 240 mm Tank/drain body Number of outlets: 1 Outlet nominal size (DN): 100 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Load class: M 125 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: square Contents of sludge trap: yes Cover Grating material: 304 stainless steel
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Material (material):
Stainless steel 14301
- Cover material (abdeckung_material):
Stainless steel 14301
- Length (laenge): 300 mm
- Width (breite): 300 mm
- Load class (belastungsklasse): M 125 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Surface (oberflaeche):
